01-152.025
ActiveEAO

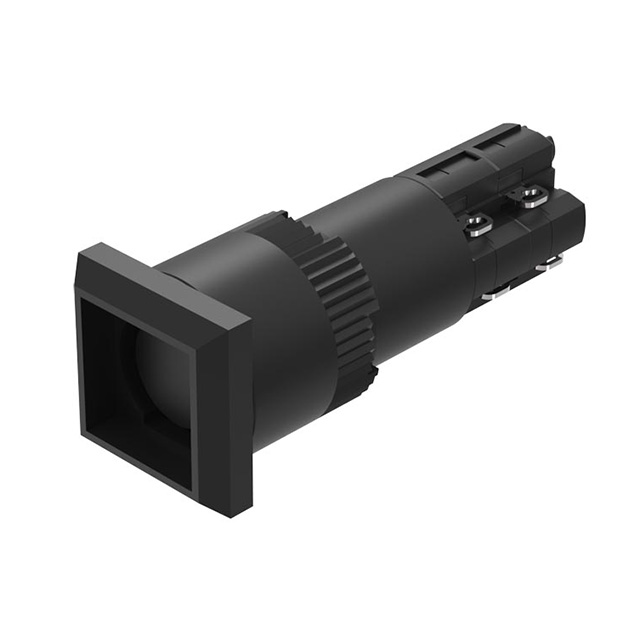

SWITCH PB 4PST-2NO/2NC 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
01-152.025
ActiveEAO
SWITCH PB 4PST-2NO/2NC 5A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 01-152.025 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Square, Button (Not Included) |
| Circuit | 4PST-2NO/2NC |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IP40 |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 63.87 | |
| 10 | $ 55.09 | |||
| 25 | $ 51.93 | |||
| 50 | $ 49.66 | |||
| 100 | $ 47.48 | |||
01-152 Series
SWITCH PB 4PST-2NO/2NC 5A 250V
| Part | Current Rating (Amps) | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Ingress Protection | Actuator Type | Voltage Rating - AC | Actuator Marking | Switch Function | Type | Panel Cutout Dimensions [diameter] | Termination Style | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 01-152.025 | 5 A | 2000000 Cycles | 55 °C | -25 °C | Panel Mount, Front | IP40 | Square, Button (Not Included) | 250 V | No Marking | Off-Mom, On-Mom | Standard | 16 mm | Solder Lug | 4PST-2NO/2NC |
Description
General part information
01-152 Series
Pushbutton Switch 4PST-2NO/2NC Standard Panel Mount, Front
