7038 Series

Part	Frequency - Max	1st Connector Mounting Type	Style	Overall Impedance	2nd Connector Mounting Type	2nd Connector	Operating Temperature (Min)	Operating Temperature (Max)	2nd Contact Gender	Color	Length	Cable Type Size	Cable Type	Cable Diameter	Cable Outer Diameter	Features	1st Contact Gender	1st Connector	Connector Type	Connector Pin Count	Shielding

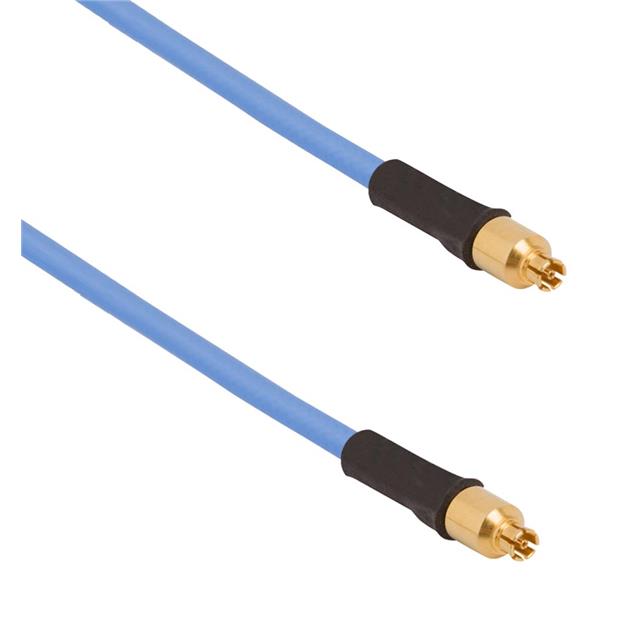

McGill Microwave Systems 7038-0253	65 GHz	Free Hanging (In-Line)	SMPS	50 Ohms	Free Hanging (In-Line)	SMPS Jack	-65 °C	165 °C	Female	Blue	0.5 ft	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Shielded	Female	SMPS Jack

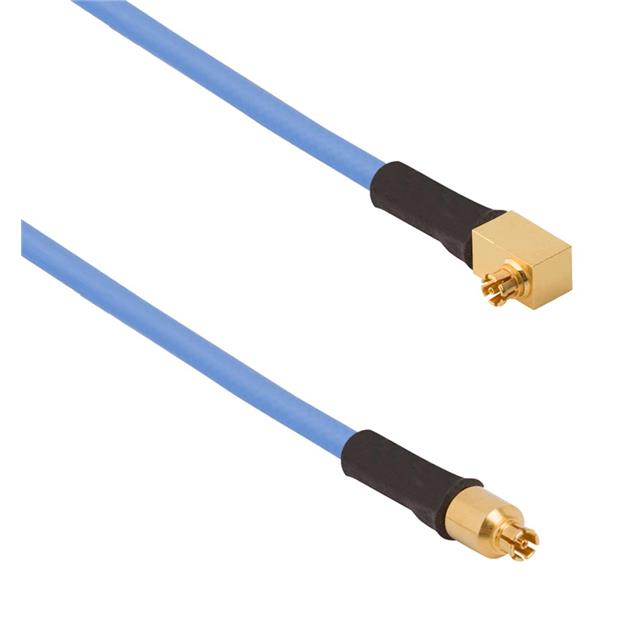

McGill Microwave Systems 7038-0251	40 Gbps	Free Hanging (In-Line)	SMPS	50 Ohms	Free Hanging (In-Line)	Right Angle SMPS Jack	-65 °C	165 °C	Female	Blue	0.5 ft	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Shielded	Female	SMPS Jack

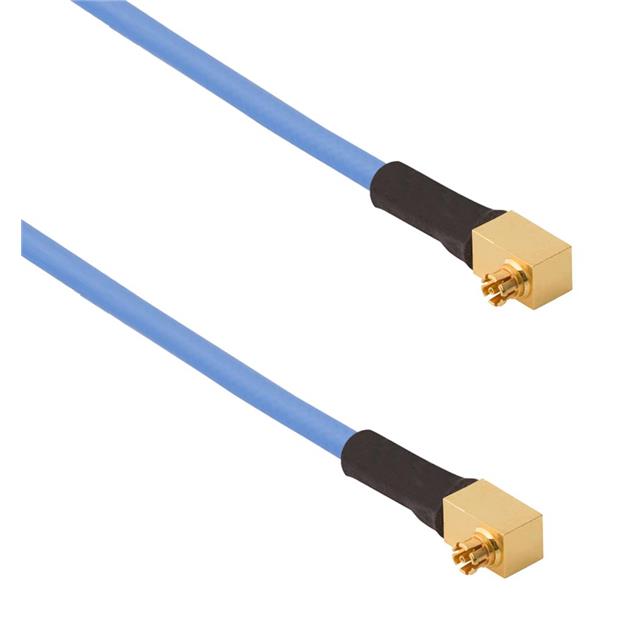

McGill Microwave Systems 7038-0250	40 Gbps	Free Hanging (In-Line)	SMPS	50 Ohms	Free Hanging (In-Line)	Right Angle SMPS Jack	-65 °C	165 °C	Female	Blue	12 in	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Shielded	Female	Right Angle SMPS Jack
McGill Microwave Systems 7038-0211										Blue	0.5 ft	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "				Mini D RF Female to SMPS Male (8)	8 pos	Unshielded
McGill Microwave Systems 7038-0252	40 Gbps	Free Hanging (In-Line)	SMPS	50 Ohms	Free Hanging (In-Line)	Right Angle SMPS Jack	-65 °C	165 °C	Female	Blue	12 in	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Shielded	Female	SMPS Jack
