339-10-104-40-000000

Active

Mill-Max Manufacturing Corp.

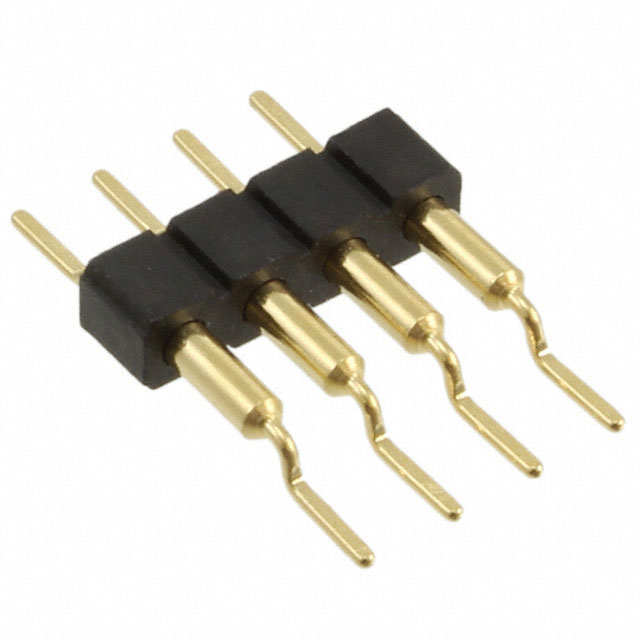

CONN SHUNT 4POS INSUL 2.54MM GLD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SHUNT 4POS INSUL 2.54MM GLD

Technical Specifications

Parameters and characteristics for this part

Specification	339-10-104-40-000000

Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Gender	Male Pins
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid)	4
Number of Positions or Pins (Grid) [custom]	1 x 4
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Insulated

Part	Gender	Material Flammability Rating	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Type	Contact Finish
Mill-Max Manufacturing Corp. 339-10-104-40-000000	Male Pins	UL94 V-0	2.54 mm	0.1 in	10 Áin	0.25 Ám	4	1 x 4	Insulated	Gold
Mill-Max Manufacturing Corp. 339-10-108-40-000000	Male Pins	UL94 V-0	2.54 mm	0.1 in	10 Áin	0.25 Ám	8		Insulated	Gold
Mill-Max Manufacturing Corp. 339-10-103-40-000000	Male Pins	UL94 V-0	2.54 mm	0.1 in	10 Áin	0.25 Ám	3		Insulated	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (1 x 4) Position Shunt Connector Insulated 0.100" (2.54mm) Gold

Technical documentation and resources

No documents available
