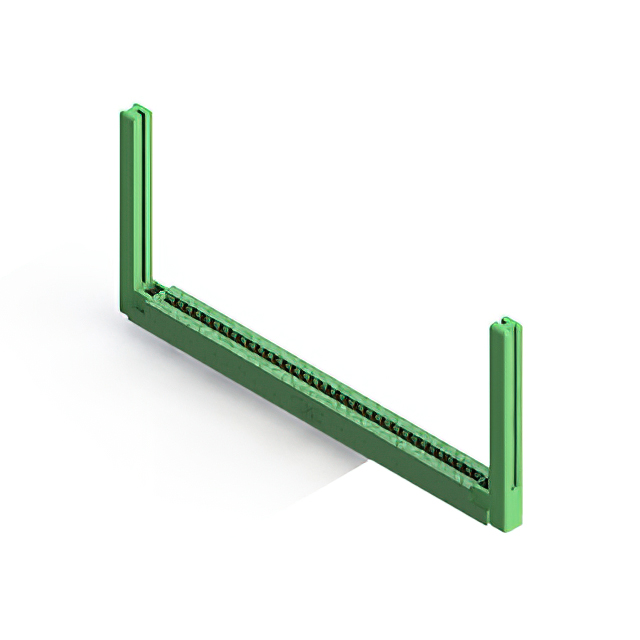

306-034-521-158
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 68POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-034-521-158 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 68 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
306-034 Series
| Part | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Rows | Color | Termination | Material - Insulation | Contact Material | Pitch [x] | Pitch [x] | Card Type | Mounting Type | Number of Positions | Read Out | Flange Feature | Contact Type | Features | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 34 | 2 | Green | Solder | Polyester Thermoplastic | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Panel Mount Through Hole | 68 | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Card Guides | Gold | ||
EDAC Inc. | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 34 | 2 | Green | Solder Eyelet(s) | Polyester Thermoplastic | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 68 | Dual | Flush Mount Side Opening Unthreaded | Cantilever | Tin | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 34 | 2 | Green | Solder | Polyester Thermoplastic | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Panel Mount Through Hole | 68 | Dual | Flush Mount Top Opening Unthreaded | Cantilever | Tin | 3.25 mm | 0.128 " | |||
EDAC Inc. | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 34 | 2 | Green | Solder | Polyester Thermoplastic | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Panel Mount Through Hole | 68 | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Card Guides | Gold | ||
EDAC Inc. | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 34 | 2 | Green | Solder | Polyester Thermoplastic | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Panel Mount Through Hole | 68 | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Card Guides | Gold | ||
EDAC Inc. | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 34 | 2 | Green | Solder | Polyester Thermoplastic | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Through Hole | 68 | Dual | Cantilever | Gold | ||||
EDAC Inc. | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 34 | 2 | Green | Solder Eyelet(s) | Polyester Thermoplastic | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Free Hanging (In-Line) | 68 | Dual | Cantilever | Gold | ||||
EDAC Inc. | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 34 | 2 | Green | Solder | Polyester Thermoplastic | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Panel Mount Through Hole | 68 | Dual | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Tin | |||||
EDAC Inc. | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 34 | 2 | Green | Solder Eyelet(s) | Polyester Thermoplastic | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 68 | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Card Guides | Gold | |||
EDAC Inc. | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 34 | 2 | Green | Solder Eyelet(s) | Polyester Thermoplastic | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 68 | Dual | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 21.53 | |
Description
General part information
306-034 Series
68 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
