01307.15.01

Active

Prysmian Group

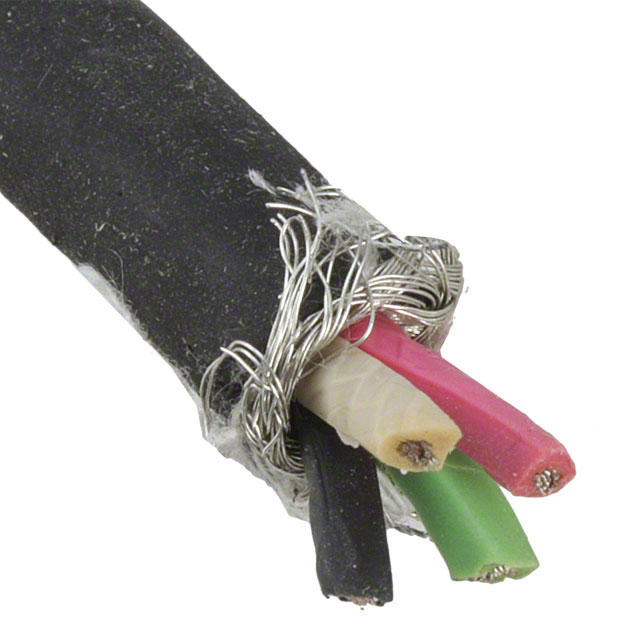

CABLE 4COND 16AWG BLACK 250'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 16AWG BLACK 250'

Technical Specifications

Parameters and characteristics for this part

Specification	01307.15.01

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Jacket (Insulation) Diameter [diameter]	0.365 in
Jacket (Insulation) Diameter [diameter]	9.27 mm
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Voltage	300 V
Wire Gauge	16 AWG

CABLE 4COND 16AWG BLACK 250'

Part	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Conductor Material	Number of Conductors	Wire Gauge	Conductor Insulation	Jacket Color
Prysmian Group 01307.15.01	30 AWG	26	3000 "	76.2 m	300 V	0.762 mm	0.03 in	Multi-Conductor	0.365 in	9.27 mm	-40 °C	60 °C	Rubber	Copper, Bare	4	16 AWG	Ethylene Propylene Terpolymer Rubber (EPDM)	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Conductor Multi-Conductor Cable Black 16 AWG 250.0' (76.2m)

Technical documentation and resources

No documents available
