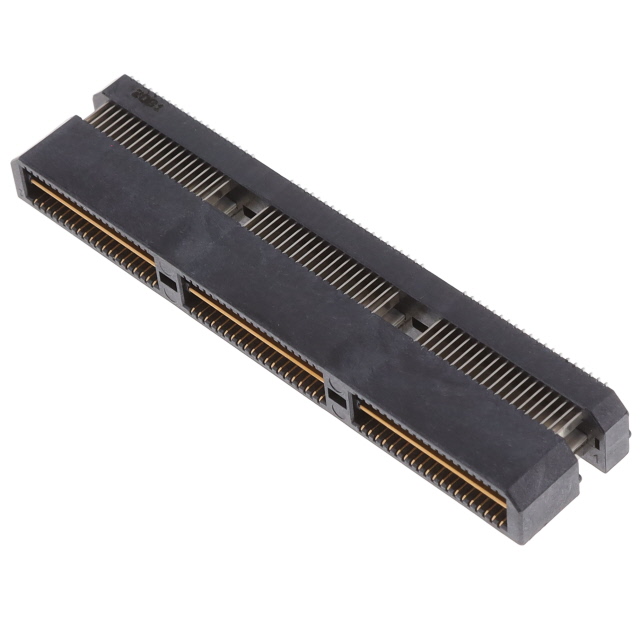

QTE-060-09-L-D-A

Active

Samtec Inc.

CONN HDR 120POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQSE Series Other Related Documents 03 Q Strip® High-Speed Ground Plane Header, 0.80mm Pitch +1

QTE-060-09-L-D-A

Active

Samtec Inc.

CONN HDR 120POS SMD GOLD

Deep-Dive with AI

DocumentsQSE Series Other Related Documents 03 Q Strip® High-Speed Ground Plane Header, 0.80mm Pitch +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTE-060-09-L-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board	13.4 mm
Height Above Board [z]	0.528 "
Mated Stacking Heights	14 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

QTE-060 Series

...

Part	Features	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows	Connector Type	Contact Finish	Pitch [x]	Pitch [x]	Mated Stacking Heights	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]
Samtec Inc. QTE-060-01-L-D-LC	Ground Bus (Plane) Locking Clip	Surface Mount	10 Áin	0.25 Ám	120	2	Header Outer Shroud Contacts	Gold	0.8 mm	0.031 in	5 mm
Samtec Inc. QTE-060-02-L-D	Ground Bus (Plane)	Surface Mount	10 Áin	0.25 Ám	120	2	Header Outer Shroud Contacts	Gold	0.8 mm	0.031 in	8 mm	7.26 mm	0.286 "
Samtec Inc. QTE-060-06-L-D-A-K	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	10 Áin	0.25 Ám	120	2	Header Outer Shroud Contacts	Gold	0.8 mm	0.031 in	22 mm			0.837 "	21.26 mm
Samtec Inc. QTE-060-01-F-D-LC	Ground Bus (Plane) Locking Clip	Surface Mount	3 Áin	0.076 Ám	120	2	Header Outer Shroud Contacts	Gold	0.8 mm	0.031 in	5 mm
Samtec Inc. QTE-060-01-L-D-K	Ground Bus (Plane) Pick and Place	Surface Mount	10 Áin	0.25 Ám	120	2	Header Outer Shroud Contacts	Gold	0.8 mm	0.031 in	5 mm
Samtec Inc. QTE-060-06-F-D-A		Surface Mount	3 Áin	0.076 Ám	120	2	Header Outer Shroud Contacts	Gold	0.8 mm	0.031 in	22 mm			0.837 "	21.26 mm
Samtec Inc. QTE-060-10-F-D-A-TR		Surface Mount	3 Áin	0.076 Ám	120	2	Header Outer Shroud Contacts	Gold	0.8 mm	0.031 in		14.37 mm	0.566 in
Samtec Inc. QTE-060-01-H-D-EM2-GP	Ground Bus (Plane) Guide Post	Board Edge Straddle Mount	30 Áin	0.76 Ám	120	2	Header Outer Shroud Contacts	Gold	0.8 mm	0.031 in
Samtec Inc. QTE-060-01-F-D	Ground Bus (Plane)	Surface Mount	3 Áin	0.076 Ám	120	2	Header Outer Shroud Contacts	Gold	0.8 mm	0.031 in	5 mm
Samtec Inc. QTE-060-09-L-D-A		Surface Mount	10 Áin	0.25 Ám	120	2	Header Outer Shroud Contacts	Gold	0.8 mm	0.031 in	14 mm	13.4 mm		0.528 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.96
		10	$ 19.84
		25	$ 19.10
		50	$ 18.63
		100	$ 17.43
