SSR21NH-M08680

Active

KEMET

CMC 68MH 800MA 2LN TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet KEM_LF0046_SSR21NV-M_NH-M.pdf +1

SSR21NH-M08680

Active

KEMET

CMC 68MH 800MA 2LN TH

Deep-Dive with AI

DocumentsDatasheet KEM_LF0046_SSR21NV-M_NH-M.pdf +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSR21NH-M08680

Current Rating (Max) [Max]	800 mA
DC Resistance (DCR) (Max) [Max]	800 mOhm
Height (Max)	14.5 mm
Height (Max) [Max]	0.571 in
Inductance @ Frequency	10 kHz, 68 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	23 mm
Size / Dimension [x]	0.906 in
Size / Dimension [y]	23 mm
Size / Dimension [y]	0.906 in
Voltage Rating - AC	250 V

SSR21NH Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Inductance @ Frequency	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Height (Max)	Height (Max) [Max]	Package / Case	Package / Case	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)	Number of Lines	DC Resistance (DCR) (Max) [Max]
KEMET SSR21NHS-08235	120 °C	-25 °C	23.5 mH	250 V	23 mm	23 mm	0.906 in	0.906 in	Through Hole	14.5 mm	0.571 in	4 Lead	Vertical	800 mA	420 mOhm	2
KEMET SSR21NHS-M25064	120 °C	-25 °C	6.4 mH	250 V	23 mm	23 mm	0.906 in	0.906 in	Through Hole	14.5 mm	0.571 in	4 Lead	Vertical	2.5 A		2	90 mOhm
KEMET SSR21NH-10250	120 °C	-25 °C	25 mH	250 V	23 mm	23 mm	0.906 in	0.906 in	Through Hole	14.5 mm	0.571 in	4 Lead	Vertical	1 A	360 mOhm	2
KEMET SSR21NH-12175	120 °C	-25 °C	17.5 mH	250 V	23 mm	23 mm	0.906 in	0.906 in	Through Hole	14.5 mm	0.571 in	4 Lead	Vertical	1.2 A		2	270 mOhm
KEMET SSR21NH-M08680	120 °C	-25 °C	10 kHz 68 mH	250 V	23 mm	23 mm	0.906 in	0.906 in	Through Hole	14.5 mm	0.571 in	4 Lead	Vertical	800 mA		2	800 mOhm
KEMET SSR21NH-M15220	120 °C	-25 °C	22 mH	250 V	23 mm	23 mm	0.906 in	0.906 in	Through Hole	14.5 mm	0.571 in	4 Lead	Vertical	1.5 A	260 mOhm	2
KEMET SSR21NHS-15082	120 °C	-25 °C	8.2 mH	250 V	23 mm	23 mm	0.906 in	0.906 in	Through Hole	14.5 mm	0.571 in	4 Lead	Vertical	1.5 A		2	130 mOhm
KEMET SSR21NHS-M10345	120 °C	-25 °C	34.5 mH	250 V	23 mm	23 mm	0.906 in	0.906 in	Through Hole	14.5 mm	0.571 in	4 Lead	Vertical	1 A		2	510 mOhm
KEMET SSR21NHS-M07680	120 °C	-25 °C	10 kHz 68 mH	250 V	23 mm	23 mm	0.906 in	0.906 in	Through Hole	14.5 mm	0.571 in	4 Lead	Vertical	700 mA		2	950 mOhm
KEMET SSR21NHS-07290	120 °C	-25 °C	29 mH	250 V	23 mm	23 mm	0.906 in	0.906 in	Through Hole	14.5 mm	0.571 in	4 Lead	Vertical	700 mA		2	530 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.82
		10	$ 2.39
		25	$ 2.21
		50	$ 1.97
		100	$ 1.64

Description

General part information

SSR21NH Series

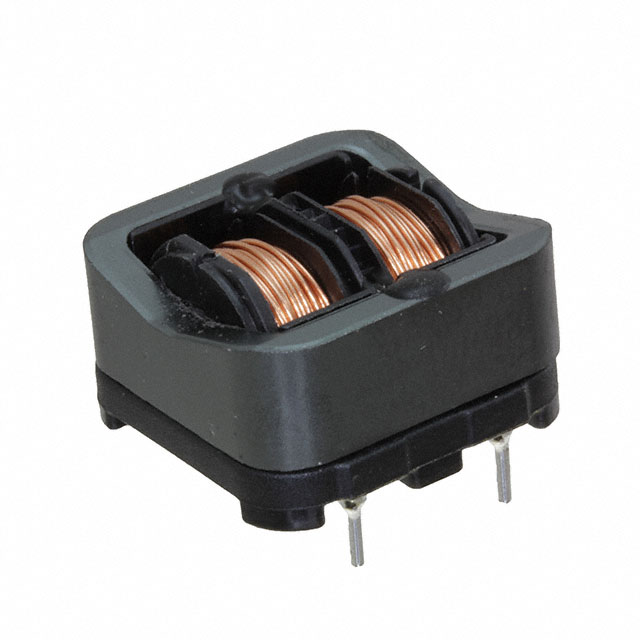

68 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 800mA DCR 800mOhm

Documents

Technical documentation and resources

Datasheet

KEM_LF0046_SSR21NV-M_NH-M.pdf

Datasheet

SSR21NH-M08680 Spec

Datasheet
