627W9W4-322-2NA

Active

EDAC Inc.

CONN D-SUB PLUG 9P PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627W9W4-322-2NA

Active

EDAC Inc.

CONN D-SUB PLUG 9P PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627W9W4-322-2NA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	9
Number of Positions [custom]	4
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 9W4
Voltage Rating	125 VDC

627W9W Series

Part	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Color	Contact Finish	Shell Material, Finish	Mounting Type	Ingress Protection	Voltage Rating	Contact Type	Current Rating (Amps)	Contact Material	Features	Material Flammability Rating	Shell Size, Connector Layout	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Dielectric Material	Termination	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 627W9W4-324-3NA	4	5	9	Black	Gold	Nickel Plated Steel	Panel Mount Through Hole	IP67 - Dust Tight Waterproof	125 VDC	Signal and Power	5 A 30 A	Copper Alloy	Grounding Indents Shielded	UL94 V-0	3 (DB B) - 9W4	Housing/Shell (M3)	-25 °C	85 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Combo D-Sub	15 µin	0.38 µm	Male Pins Plug
EDAC Inc. 627W9W4-322-4NA	4	5	9	Black	Gold	Nickel Plated Steel	Panel Mount Through Hole	IP67 - Dust Tight Waterproof	125 VDC	Signal and Power	5 A 40 A	Copper Alloy	Grounding Indents Shielded	UL94 V-0	3 (DB B) - 9W4	Housing/Shell (M3)	-25 °C	85 °C	2	Polybutylene Terephthalate (PBT) Glass Filled		Combo D-Sub	15 µin	0.38 µm	Male Pins Plug
EDAC Inc. 627W9W4-624-1NA	4	5	9	Black	Gold	Nickel Plated Steel	Panel Mount Through Hole	IP67 - Dust Tight Waterproof	125 VDC	Signal and Power		Copper Alloy	Grounding Indents Shielded	UL94 V-0	3 (DB B) - 9W4	Housing/Shell (M3)	-25 °C	85 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Combo D-Sub	30 Áin	0.76 Ám	Male Pins Plug	10A 5A
EDAC Inc. 627W9W4-124-3N2	4	5	9	Black	Gold	Nickel Plated Steel	Panel Mount Through Hole	IP67 - Dust Tight Waterproof	125 VDC	Signal and Power	5 A 30 A	Copper Alloy	Grounding Indents Shielded	UL94 V-0	3 (DB B) - 9W4	Housing/Shell (4-40)	-25 °C	85 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Combo D-Sub	5 µin	0.127 µm	Male Pins Plug
EDAC Inc. 627W9W4-324-1NA	4	5	9	Black	Gold	Nickel Plated Steel	Panel Mount Through Hole	IP67 - Dust Tight Waterproof	125 VDC	Signal and Power		Copper Alloy	Grounding Indents Shielded	UL94 V-0	3 (DB B) - 9W4	Housing/Shell (M3)	-25 °C	85 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Combo D-Sub	15 µin	0.38 µm	Male Pins Plug	10A 5A
EDAC Inc. 627W9W4-322-2NA	4	5	9	Black	Gold	Nickel Plated Steel	Panel Mount Through Hole	IP67 - Dust Tight Waterproof	125 VDC	Signal and Power	5 A 20 A	Copper Alloy	Grounding Indents Shielded	UL94 V-0	3 (DB B) - 9W4	Housing/Shell (M3)	-25 °C	85 °C	2	Polybutylene Terephthalate (PBT) Glass Filled		Combo D-Sub	15 µin	0.38 µm	Male Pins Plug
EDAC Inc. 627W9W4-124-2N2	4	5	9	Black	Gold	Nickel Plated Steel	Panel Mount Through Hole	IP67 - Dust Tight Waterproof	125 VDC	Signal and Power	5 A 20 A	Copper Alloy	Grounding Indents Shielded	UL94 V-0	3 (DB B) - 9W4	Housing/Shell (4-40)	-25 °C	85 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Combo D-Sub	5 µin	0.127 µm	Male Pins Plug
EDAC Inc. 627W9W4-224-1NA	4	5	9	Black	Gold	Nickel Plated Steel	Panel Mount Through Hole	IP67 - Dust Tight Waterproof	125 VDC	Signal and Power		Copper Alloy	Grounding Indents Shielded	UL94 V-0	3 (DB B) - 9W4	Housing/Shell (M3)	-25 °C	85 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Combo D-Sub			Male Pins Plug	10A 5A	Flash
EDAC Inc. 627W9W4-222-3NA	4	5	9	Black	Gold	Nickel Plated Steel	Panel Mount Through Hole	IP67 - Dust Tight Waterproof	125 VDC	Signal and Power	5 A 30 A	Copper Alloy	Grounding Indents Shielded	UL94 V-0	3 (DB B) - 9W4	Housing/Shell (M3)	-25 °C	85 °C	2	Polybutylene Terephthalate (PBT) Glass Filled		Combo D-Sub			Male Pins Plug		Flash
EDAC Inc. 627W9W4-224-2N5	4	5	9	Black	Gold	Nickel Plated Steel	Panel Mount Through Hole	IP67 - Dust Tight Waterproof	125 VDC	Signal and Power	5 A 20 A	Copper Alloy	Board Lock Grounding Indents Shielded	UL94 V-0	3 (DB B) - 9W4	4-40 Board Side	-25 °C	85 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Combo D-Sub			Male Pins Plug		Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 20.30

Description

General part information

627W9W Series

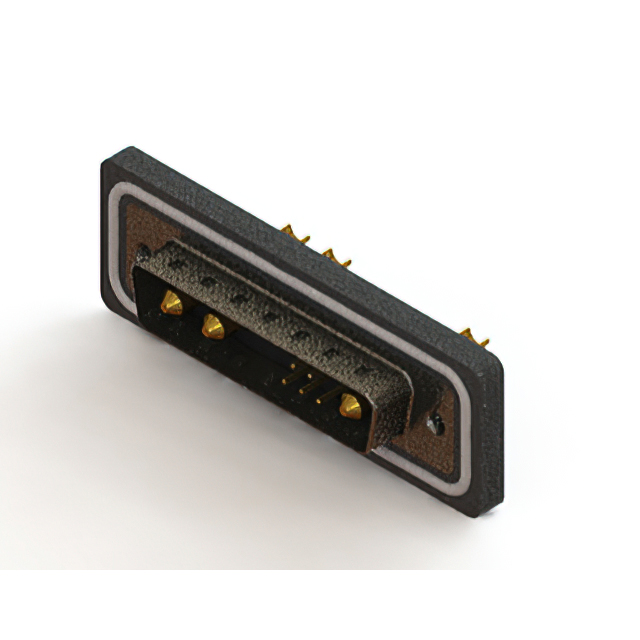

9 (5 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
