ECA-2CHG101

Active

Panasonic Industrial Automation Sales

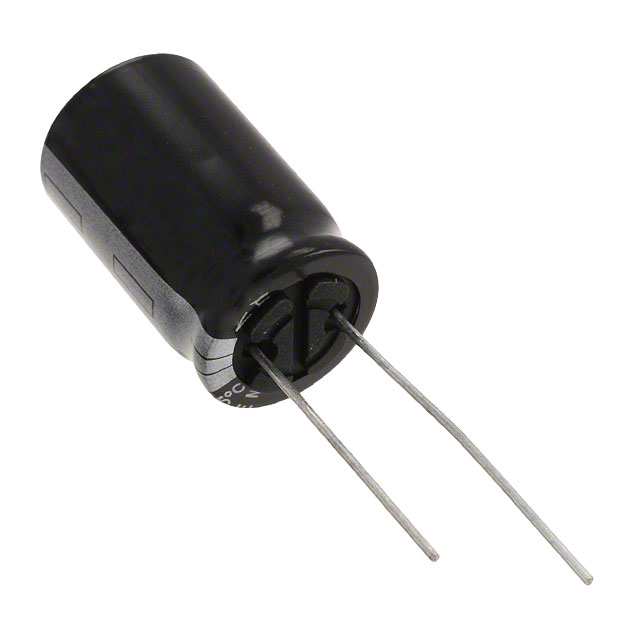

CAP ALUM 100UF 20% 160V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

ECA-2CHG101

Active

Panasonic Industrial Automation Sales

CAP ALUM 100UF 20% 160V RADIAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-2CHG101

Applications	General Purpose
Capacitance	100 µF
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	502.5 mA
Ripple Current @ Low Frequency	70 mA
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	160 V

ECA-2CH Series

Part	Applications	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Lead Spacing	Lead Spacing	Voltage - Rated	Capacitance	Ripple Current @ High Frequency	Polarization	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ratings
Panasonic Industrial Automation Sales ECA-2CHG470	General Purpose	220 mA	22 mm	0.866 in	Radial Can	5 mm	0.197 in	160 V	47 µF	330 mA	Polar	2000 Hrs	0.492 in	12.5 mm	20 %	Through Hole	-25 °C	105 ░C
Panasonic Industrial Automation Sales ECA-2CHG101	General Purpose	70 mA	27 mm	1.063 in	Radial Can	7.5 mm	0.295 in	160 V	100 µF	502.5 mA	Polar	2000 Hrs	0.63 in	16 mm	20 %	Through Hole	-25 °C	105 ░C
Panasonic Industrial Automation Sales ECA-2CHG2R2I	General Purpose	25 mA	12.2 mm	0.48 "	Radial Can	2.5 mm	0.098 in	160 V	2.2 µF	37.5 mA	Polar	2000 Hrs	0.248 in	6.3 mm	20 %	Through Hole	-25 °C	105 ░C
Panasonic Industrial Automation Sales ECA-2CHG010B	Automotive	17 mA	12.2 mm	0.48 "	Radial Can	5 mm	0.197 in	160 V	1 µF	25.5 mA	Polar	2000 Hrs	0.248 in	6.3 mm	20 %	Through Hole	-25 °C	105 ░C	AEC-Q200
Panasonic Industrial Automation Sales ECA-2CHG330B	General Purpose	180 mA	22 mm	0.866 in	Radial Can	5 mm	0.197 in	160 V	33 ÁF	270 mA	Polar	2000 Hrs	0.394 in	10 mm	20 %	Through Hole	-25 °C	105 ░C
Panasonic Industrial Automation Sales ECA-2CHG010	General Purpose	17 mA	12.2 mm	0.48 "	Radial Can	2.5 mm	0.098 in	160 V	1 µF	25.5 mA	Polar	2000 Hrs	0.248 in	6.3 mm	20 %	Through Hole	-25 °C	105 ░C
Panasonic Industrial Automation Sales ECA-2CHG470B	General Purpose	220 mA	22 mm	0.866 in	Radial Can	5 mm	0.197 in	160 V	47 µF	330 mA	Polar	2000 Hrs	0.492 in	12.5 mm	20 %	Through Hole	-25 °C	105 ░C
Panasonic Industrial Automation Sales ECA-2CHG4R7I	General Purpose	43 mA	12.2 mm	0.48 "	Radial Can	2.5 mm	0.098 in	160 V	4.7 µF	64.5 mA	Polar	2000 Hrs	0.248 in	6.3 mm	20 %	Through Hole	-25 °C	105 ░C
Panasonic Industrial Automation Sales ECA-2CHG3R3I	General Purpose	36 mA	12.2 mm	0.48 "	Radial Can	2.5 mm	0.098 in	160 V	3.3 µF	54 mA	Polar	2000 Hrs	0.248 in	6.3 mm	20 %	Through Hole	-25 °C	105 ░C
Panasonic Industrial Automation Sales ECA-2CHG2R2B	General Purpose	25 mA	12.2 mm	0.48 "	Radial Can	5 mm	0.197 in	160 V	2.2 µF	37.5 mA	Polar	2000 Hrs	0.248 in	6.3 mm	20 %	Through Hole	-25 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.14
		10	$ 0.85
		50	$ 0.78
		100	$ 0.64
		500	$ 0.51
		1000	$ 0.45
		2500	$ 0.42
		5000	$ 0.40

Description

General part information

ECA-2CH Series

100 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

Documents

Technical documentation and resources

No documents available
