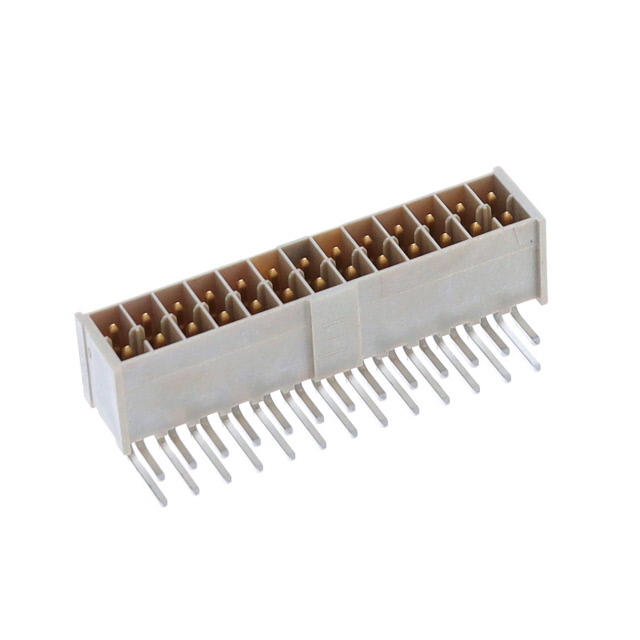

IPL1-113-01-L-D-RA-K
ActiveSamtec Inc.
CONN HEADER R/A 26POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
IPL1-113-01-L-D-RA-K
ActiveSamtec Inc.
CONN HEADER R/A 26POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPL1-113-01-L-D-RA-K |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating | 5.46 mm |
| Contact Length - Mating | 0.215 in |
| Contact Length - Post | 2.16 mm |
| Contact Length - Post | 0.085 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 7.37 mm |
| Insulation Height | 0.29 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 954 VDC, 675 VAC |
IPL1-113 Series
| Part | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Rows | Fastening Type | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Contact Material | Connector Type | Mounting Type | Contact Type | Number of Positions | Shrouding | Termination | Contact Length - Post | Contact Length - Post | Contact Length - Mating | Contact Length - Mating | Style | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Material Flammability Rating | Contact Finish - Mating | Number of Positions Loaded | Voltage Rating | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Features | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | 2.54 mm | 0.1 in | 2 | Locking Ramp | Tin | 10 çin | 0.25 çm | Natural | Phosphor Bronze | Header | Through Hole Right Angle | Male Pin | 26 | Shrouded - 4 Wall | Solder | 2.16 mm | 0.085 in | 5.46 mm | 0.215 in | Board to Cable/Wire | 0.1 in | 2.54 mm | 7.37 mm | 0.29 in | UL94 V-0 | Gold | All | 675 VAC 954 VDC | Square | |||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | 2.54 mm | 0.1 in | 2 | Locking Ramp | Tin | 3 µin | 0.076 µm | Natural | Phosphor Bronze | Header | Surface Mount | Male Pin | 26 | Shrouded - 4 Wall | Solder | 5.46 mm | 0.215 in | Board to Cable/Wire | 0.1 in | 2.54 mm | 8.13 mm | 0.32 in | UL94 V-0 | Gold | All | 675 VAC 954 VDC | Square | |||||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | 2.54 mm | 0.1 in | 2 | Locking Ramp | Tin | 30 Áin | 0.76 Ám | Natural | Phosphor Bronze | Header | Through Hole | Male Pin | 26 | Shrouded - 4 Wall | Solder | 5.46 mm | 0.215 in | Board to Cable/Wire | 0.1 in | 2.54 mm | 8.13 mm | 0.32 in | UL94 V-0 | Gold | All | 675 VAC 954 VDC | Square | 0.12 in | 3.05 mm | |||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | 1 | Locking Ramp | Tin | 10 çin | 0.25 çm | Natural | Phosphor Bronze | Header | Surface Mount Right Angle | Male Pin | 13 | Shrouded - 4 Wall | Solder | 5.46 mm | 0.215 in | Board to Cable/Wire | 0.1 in | 2.54 mm | 5.6 mm | 0.22 in | UL94 V-0 | Gold | All | 675 VAC 954 VDC | Square | Board Guide | ||||||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | 2.54 mm | 0.1 in | 2 | Locking Ramp | Tin | 10 çin | 0.25 çm | Natural | Phosphor Bronze | Header | Surface Mount | Male Pin | 26 | Shrouded - 4 Wall | Solder | 5.46 mm | 0.215 in | Board to Cable/Wire | 0.1 in | 2.54 mm | 8.13 mm | 0.32 in | UL94 V-0 | Gold | All | 675 VAC 954 VDC | Square | |||||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | 2.54 mm | 0.1 in | 2 | Locking Ramp | Tin | 3 µin | 0.076 µm | Natural | Phosphor Bronze | Header | Through Hole Right Angle | Male Pin | 26 | Shrouded - 4 Wall | Solder | 2.16 mm | 0.085 in | 5.46 mm | 0.215 in | Board to Cable/Wire | 0.1 in | 2.54 mm | 7.37 mm | 0.29 in | UL94 V-0 | Gold | All | 675 VAC 954 VDC | Square | |||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | 2.54 mm | 0.1 in | 2 | Locking Ramp | Gold | 30 Áin | 0.76 Ám | Natural | Phosphor Bronze | Header | Through Hole | Male Pin | 26 | Shrouded - 4 Wall | Solder | 5.46 mm | 0.215 in | Board to Cable/Wire | 0.1 in | 2.54 mm | 8.13 mm | 0.32 in | UL94 V-0 | Gold | All | 675 VAC 954 VDC | Square | 0.12 in | 3.05 mm | 3 µin | 0.076 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.82 | |
| 25 | $ 4.21 | |||
| 50 | $ 3.81 | |||
| 100 | $ 3.31 | |||
| 500 | $ 2.94 | |||
Description
General part information
IPL1-113 Series
Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm)
