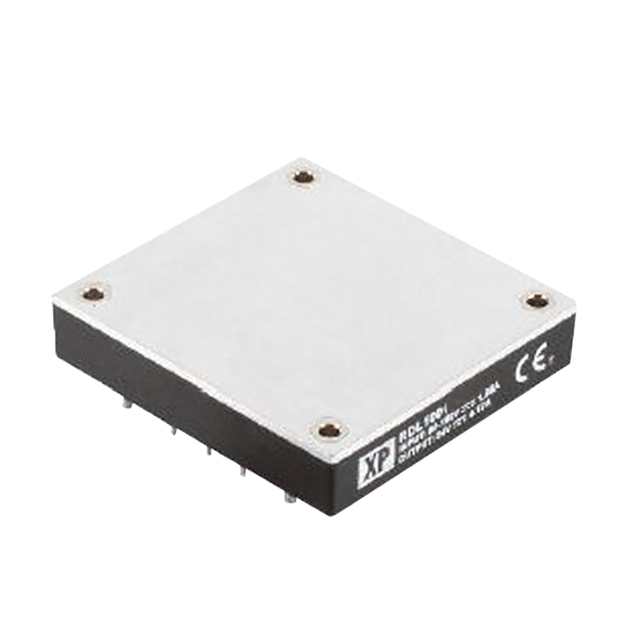

RDL100110S48

Obsolete

XP POWER

DC DC CONVERTER 48V 100W

Search across all available documentation for this part.

Obsolete

XP POWER

DC DC CONVERTER 48V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	RDL100110S48

Applications	Railway, ITE (Commercial)
Current - Output (Max) [Max]	2.08 A
Efficiency	89 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Half Brick
Power (Watts)	100 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	2.28 in
Size / Dimension [y]	57.9 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Supplier Device Package	Half Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	66 V
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Applications	Power (Watts)	Number of Outputs	Voltage - Isolation	Current - Output (Max) [Max]	Package / Case	Type	Voltage - Input (Max) [Max]	Voltage - Output 1	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]
XP POWER RDL100110S48	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C	Half Brick	Through Hole	ITE (Commercial) Railway	100 W	1	3000 V	2.08 A	Half Brick	Isolated Module	160 V	48 V	89 %	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	66 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 48V 2.08A 66V - 160V Input
