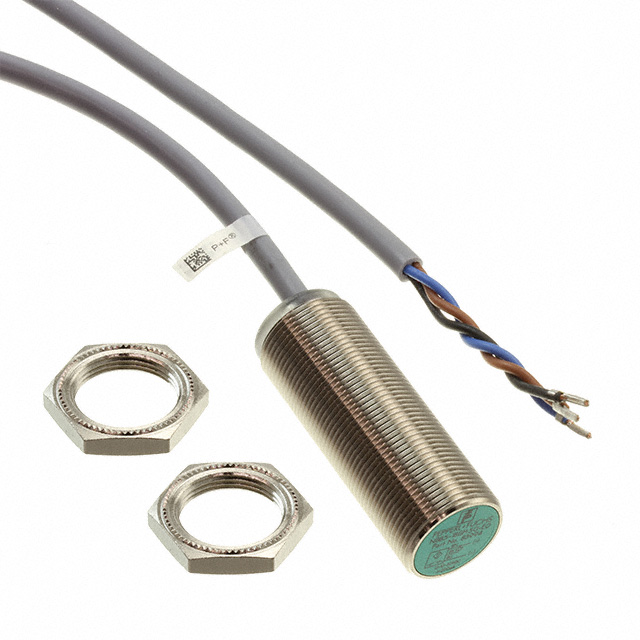

NBB5-18GM50-E0

NBB5-18GM50-E0

Active
Pepperl+Fuchs, Inc.

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 5 MM, CYLINDRICAL, NPN, 10 TO 30 VDC, PRE-WIRED

Find alt
NBB5-18GM50-E0

NBB5-18GM50-E0

Active
Pepperl+Fuchs, Inc.

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 5 MM, CYLINDRICAL, NPN, 10 TO 30 VDC, PRE-WIRED

Find alt

Description

General part information

NBB5-18 Series

The NBB5-18GM50-E0 is an Inductive Proximity Sensor that is the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery equipment. Pepperl+Fuchs offers innovative, high quality inductive sensor to meet the needs of the worldwide automation and process control markets. Standard inductive sensor features smooth or threaded stainless housings, polarity reversal and short-circuit protected, LED status indication.

Technical Specifications

Parameters and characteristics for this part

SpecificationNBB5-18GM50-E0
IndicatorLED
Ingress ProtectionIP67
Material - BodyNickel-Plated Brass
Operating Temperature (Max)70 °C
Operating Temperature (Min)-25 °C
Output Type3-Wire, NPN-NO
Package / CaseCylinder, Threaded - M18
Sensing Distance0.197 "
Sensor TypeInductive
ShieldingUnshielded
Termination StyleCable
Voltage - Supply (Maximum)30 VDC
Voltage - Supply (Minimum)10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Technical Data Sheet EN
