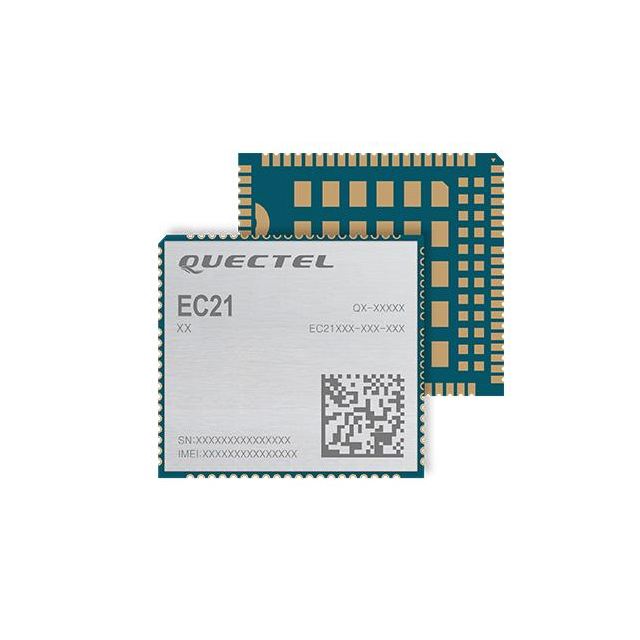

Specification	EC21AUXGA-128-SGNS

Antenna Type	Antenna Not Included
Current - Receiving	34 mA
Current - Transmitting	34 mA
Data Rate	10 Mbps
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Module
Power - Output	33 dBm
Protocol	GSM, WCDMA, LTE
RF Family/Standard	Cellular
Sensitivity	-102 dBm
Serial Interfaces	UART, USB
Voltage - Supply (Maximum)	4.3 V
Voltage - Supply (Minimum)	3.3 V

EC21 Series

Part	Utilized IC / Part	Antenna Type	RF Family/Standard	Protocol	Data Rate	Serial Interfaces	Package / Case	Current - Transmitting	Mounting Type	Current - Receiving	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Sensitivity	Power - Output
Quectel EC21JFA-MINIPCIE	MDM9307-0	Antenna Not Included	Cellular Navigation	BeiDou Galileo GLONASS GNSS GPS LTE	10 Mbps	I2C PCM UART USB	Module	32 mA	Card Edge	32 mA	3.6 V	3 V	75 °C	-35 °C
Quectel EC21AUTFB-MINIPCIE	MDM9207-1	Antenna Not Included	Cellular	LTE WCDMA	10 Mbps	UART USB	Module	34 mA	Card Edge	34 mA	3.6 V	3 V	80 °C	-40 °C	-102 dBm	33 dBm
Quectel EC21AUXGA-128-SGNS		Antenna Not Included	Cellular	GSM LTE WCDMA	10 Mbps	UART USB	Module	34 mA	Surface Mount	34 mA	4.3 V	3.3 V	85 °C	-40 °C	-102 dBm	33 dBm
Quectel EC21JFA-512-STD	MDM9307-0	Antenna Not Included	Cellular	LTE	10 Mbps	UART USB	Module	34 mA	Card Edge	34 mA	3.6 V	3 V	80 °C	-40 °C	-102 dBm	33 dBm
Quectel EC21EUXGA-MINIPCIE		Antenna Not Included	Cellular Navigation	BeiDou EDGE Galileo GLONASS GNSS GPS GSM LTE UMTS WCDMA	42 Mbps	I2C PCM UART USB	Module	22 mA	Card Edge	22 mA	3.6 V	3 V	75 °C	-35 °C
Quectel EC21EUGA-MINIPCIE	MDM9207-1	Antenna Not Included	Cellular Navigation	BeiDou EDGE Galileo GLONASS GNSS GPS GSM LTE UMTS WCDMA	42 Mbps	I2C PCM UART USB	Module	23 mA	Card Edge	23 mA	3.6 V	3 V	75 °C	-35 °C
Quectel EC21AFA-512-STD	MDM9207-1	Antenna Not Included	Cellular	LTE WCDMA	10 Mbps	UART USB	Module	34 mA	Card Edge	34 mA	3.6 V	3 V	80 °C	-40 °C	-102 dBm	33 dBm
Quectel EC21AFATEA-512-STD		Antenna Not Included	Cellular	LTE WCDMA	10 Mbps	UART USB	Module	34 mA	Card Edge	34 mA	3.6 V	3 V	80 °C	-40 °C	-102 dBm	33 dBm
Quectel EC21AUFA-MINIPCIE	MDM9207-1	Antenna Not Included	Cellular	GSM LTE WCDMA	10 Mbps	UART USB	Module	34 mA	Card Edge	34 mA	3.6 V	3 V	80 °C	-40 °C	-102 dBm	33 dBm
Quectel EC21AFA-MINIPCIE	MDM9207-1	Antenna Not Included	Cellular Navigation	BeiDou Galileo GLONASS GNSS GPS LTE UMTS WCDMA	42 Mbps	I2C PCM UART USB	Module	32 mA	Card Edge	32 mA	3.6 V	3 V	75 °C	-35 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

EC21AUXGA-128-SGNS | Datasheet
