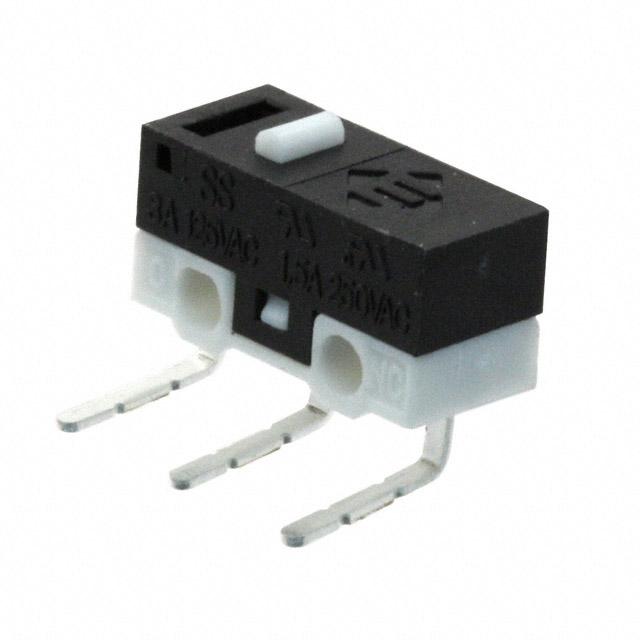

SS0750300F070V1A

Active

E-Switch

SWITCH SNAP ACTION SPDT 3A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACTION SPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Termination Style	Electrical Life	Operating Position [x]	Operating Position [x]	Current Rating (Amps)	Circuit	Voltage Rating - AC	Actuator Type	Release Force	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Pretravel	Pretravel	Operating Force
E-Switch SS0750300F070V1A	On-Mom	PC Pin	100000 Cycles	0.276 in	7 mm	3 A	SPDT	125 V	Round (Pin Plunger)	25 gf	Through Hole Right Angle	-25 °C	75 ░C	1000000 Cycles	0.35 mm	0.014 in	70 gf
E-Switch SS0750300F070P1A	On-Mom	PC Pin	100000 Cycles	0.276 in	7 mm	3 A	SPDT	125 V	Round (Pin Plunger)	25 gf	Through Hole	-25 °C	75 ░C	1000000 Cycles	0.35 mm	0.014 in	70 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1200	$ 0.74

General part information

Switch SPDT Through Hole, Right Angle
