1072673

Active

SICK, Inc.

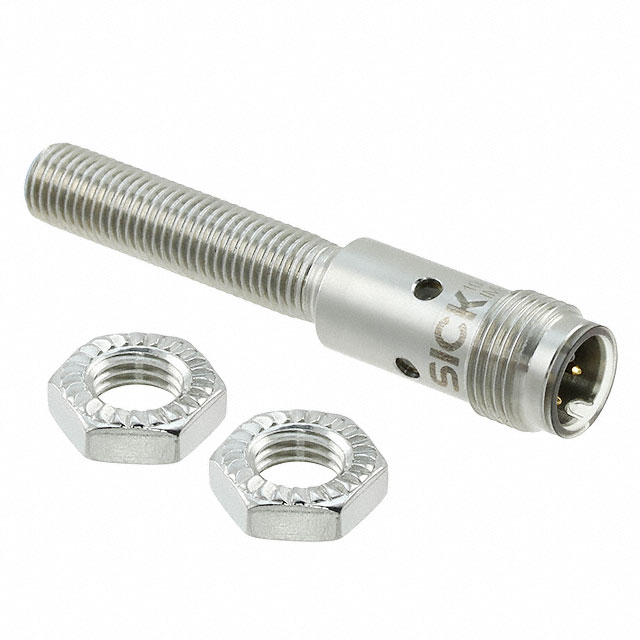

SENSOR PROX INDUCT 2MM IP69K CYL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1072673

Active

SICK, Inc.

SENSOR PROX INDUCT 2MM IP69K CYL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1072673

Indicator [custom]	LED
Ingress Protection	IP69K
Material - Body	Stainless Steel
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M8
Response Frequency	4 kHz
Sensing Distance	0.079 in
Sensing Distance	2 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

IMB08 Series

Part	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Frequency	Package / Case	Termination Style	Sensor Type	Sensing Distance	Sensing Distance	Output Type	Indicator [custom]	Material - Body	Operating Temperature [Min]	Operating Temperature [Max]	Shielding
SICK, Inc. 1075585	IP68 IP69K	30 VDC	10 VDC	4 kHz	Cylinder Threaded - M8	Cable Leads	Inductive	0.079 in	2 mm	NO 2-Wire	No Indicator	Plastic	-40 °C	100 °C	Shielded
SICK, Inc. 1072591	IP68 IP69K	30 VDC	10 VDC	4 kHz	Cylinder Threaded - M8	Connector	Inductive	0.079 in	2 mm	NPN-NC 3-Wire	No Indicator	Plastic	-40 °C	100 °C	Shielded
SICK, Inc. 1072693	IP68 IP69K	30 VDC	10 VDC	4 kHz	Cylinder Threaded - M8	Connector	Inductive	0.079 in	2 mm	NPN-NC 3-Wire	No Indicator	Plastic	-40 °C	100 °C	Shielded
SICK, Inc. 1072703	IP68 IP69K	30 VDC	10 VDC	4 kHz	Cylinder Threaded - M8	Cable Leads	Inductive	0.157 in	4 mm	NPN-NC 3-Wire	No Indicator	Plastic	-40 °C	100 °C	Shielded
SICK, Inc. 1072685	IP68 IP69K	30 VDC	10 VDC	4 kHz	Cylinder Threaded - M8	Cable Leads	Inductive	0.079 in	2 mm	NPN-NO 3-Wire	No Indicator	Plastic	-40 °C	100 °C	Shielded
SICK, Inc. 1072673	IP69K	30 VDC	10 VDC	4 kHz	Cylinder Threaded - M8	Connector	Inductive	0.079 in	2 mm	PNP-NO 3-Wire	LED	Stainless Steel	-40 °C	100 °C	Unshielded
SICK, Inc. 1074352	IP68 IP69K	30 VDC	10 VDC	4 kHz	Cylinder Threaded - M8	Connector	Inductive	0.079 in	2 mm	NPN-NC/NO 4-Wire	LED	Plastic	-40 °C	100 °C	Shielded
SICK, Inc. IMB08-04NNSVT0K	IP68 IP69K	30 VDC	10 VDC	4 kHz	Cylinder Threaded - M8	Connector	Inductive	0.157 in	4 mm	NPN-NO 3-Wire	No Indicator	Plastic	-40 °C	100 °C	Shielded
SICK, Inc. 1072698	IP68 IP69K	30 VDC	10 VDC	4 kHz	Cylinder Threaded - M8	Cable Leads	Inductive	0.079 in	2 mm	PNP-NC 3-Wire	No Indicator	Plastic	-40 °C	100 °C	Shielded
SICK, Inc. 1072697	IP69K	30 VDC	10 VDC	4 kHz	Cylinder Threaded - M8	Cable Leads	Inductive	0.079 in	2 mm	PNP-NO 3-Wire	LED	Stainless Steel	-40 °C	100 °C	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 99.54
		10	$ 82.95
		100	$ 77.42

Description

General part information

IMB08 Series

SENSOR PROX INDUCT 2MM IP69K CYL

Documents

Technical documentation and resources
