892-046 Series

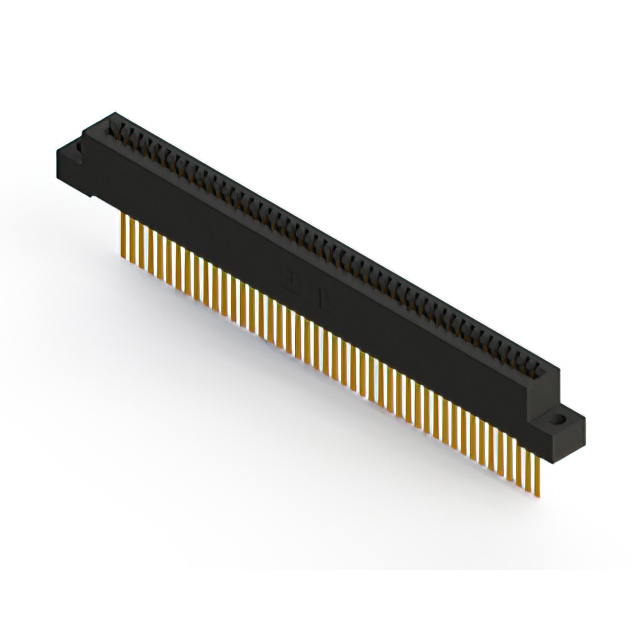

46 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	892-046-544-104

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Top Opening, Flush Mount
Flange Feature Diameter	0.156 in
Gender	Female
Material - Insulation	PPS, Polyphenylene Sulfide
Mounting Type	Through Hole
Number of Positions	46
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1 rows

892-046 Series

...

Part	Pitch	Termination	Flange Feature Diameter	Flange Feature	Gender	Card Thickness (Min)	Card Thickness (Max)	Number of Positions	Features	Color	Number of Rows	Read Out	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish	Contact Type	Contact Material	Mounting Type	Contact Finish Thickness	Card Type	Material - Insulation	Termination Rows
EDAC Inc. 892-046-555-212	0.1 in	Solder	0.128 in	Flush Mount Side Opening Unthreaded	Female	0.054 in	0.07 in	23 46	Card Extender	Black	2	Dual	125 °C	-40 °C	Gold	Cantilever	Copper Alloy	Board Edge Straddle Mount	10 Ąin	Dual Edge Non Specified	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 892-046-556-204	0.1 in	Solder	0.156 in	Flush Mount Top Opening Unthreaded	Female	0.054 in	0.07 in	23 46	Card Extender	Black	2	Dual	125 °C	-40 °C	Gold	Cantilever	Copper Alloy	Board Edge Straddle Mount	10 Ąin	Dual Edge Non Specified	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 892-046-541-108	0.1 in	Wire Wrap		4-40 Flush Mount Threaded Insert Top Opening	Female	0.054 in	0.07 in	46		Black	1	Single	125 °C	-40 °C	Gold	Cantilever	Copper Alloy	Through Hole	10 Ąin	Non Specified Single Edge	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 892-046-558-101	0.1 in	Solder			Female	0.054 in	0.07 in	46		Black	1	Single	125 °C	-40 °C	Gold	Cantilever	Copper Alloy	Right Angle Through Hole	10 Ąin	Non Specified Single Edge	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 892-046-520-202	0.1 in	Solder	0.128 in	Flush Mount Top Opening Unthreaded	Female	0.054 in	0.07 in	23 46		Black	2	Dual	125 °C	-40 °C	Gold	Cantilever	Copper Alloy	Through Hole	10 Ąin	Dual Edge Non Specified	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 892-046-544-104	0.1 in	Wire Wrap	0.156 in	Flush Mount Top Opening Unthreaded	Female	0.054 in	0.07 in	46		Black	1	Single	125 °C	-40 °C	Gold	Cantilever	Copper Alloy	Through Hole	10 Ąin	Non Specified Single Edge	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 892-046-555-208	0.1 in	Solder		4-40 Flush Mount Threaded Insert Top Opening	Female	0.054 in	0.07 in	23 46	Card Extender	Black	2	Dual	125 °C	-40 °C	Gold	Cantilever	Copper Alloy	Board Edge Straddle Mount	10 Ąin	Dual Edge Non Specified	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 892-046-520-207	0.1 in	Solder		Flush Mount M3 Threaded Insert Top Opening	Female	0.054 in	0.07 in	23 46		Black	2	Dual	125 °C	-40 °C	Gold	Cantilever	Copper Alloy	Through Hole	10 Ąin	Dual Edge Non Specified	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 892-046-560-212	0.1 in	Solder	0.128 in	Flush Mount Side Opening Unthreaded	Female	0.054 in	0.07 in	23 46	Card Extender	Black	2	Dual	125 °C	-40 °C	Gold	Cantilever	Copper Alloy	Board Edge Straddle Mount	10 Ąin	Dual Edge Non Specified	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 892-046-520-108	0.1 in	Solder		4-40 Flush Mount Threaded Insert Top Opening	Female	0.054 in	0.07 in	46		Black	1	Single	125 °C	-40 °C	Gold	Cantilever	Copper Alloy	Through Hole	10 Ąin	Non Specified Single Edge	Polyphenylene Sulfide PPS	1 rows
