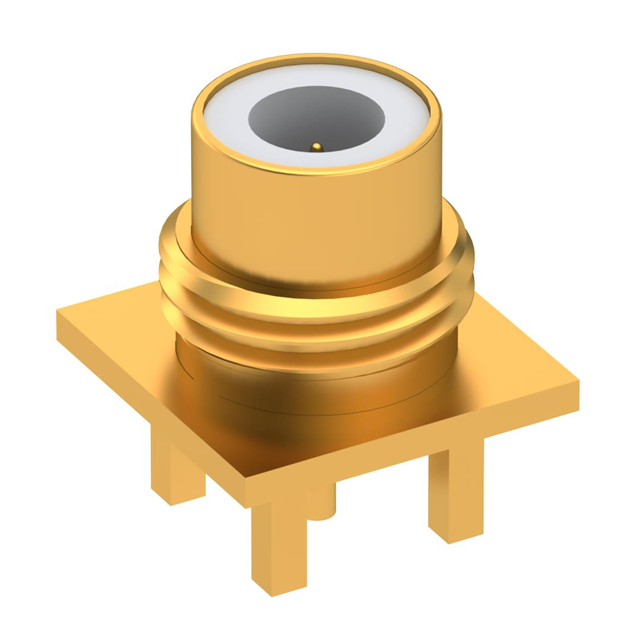

1709-1511-000

Active

Radiall USA, Inc.

75OHM M STR BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

75OHM M STR BHD

Technical Specifications

Parameters and characteristics for this part

Specification	1709-1511-000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Impedance	75 Ohms
Mounting Type	Through Hole
Number of Ports	1
Shield Termination	Solder

75OHM M STR BHD

Part	Body Finish	Mounting Type	Impedance	Fastening Type	Center Contact Plating	Number of Ports	Body Material	Shield Termination	Dielectric Material	Connector Type	Contact Termination	Housing Color	Center Contact Material
Radiall USA, Inc. 1709-1511-000	Gold	Through Hole	75 Ohms	Snap-On	Gold	1	Brass	Solder	Polytetrafluoroethylene (PTFE)	Jack, Male Pin	Solder	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Jack, Male Pin 75 Ohms Through Hole Solder
