CJT-T-P-HH-ST-TH1

Active

Samtec Inc.

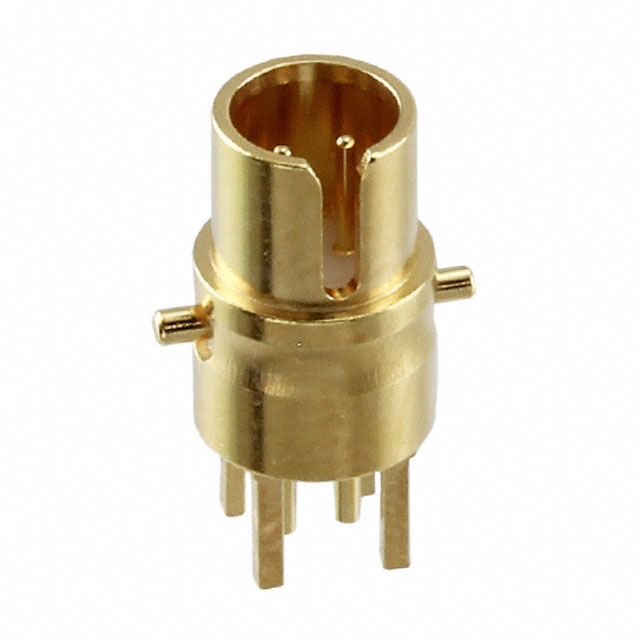

CONN TWINAX JACK STR PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN TWINAX JACK STR PCB

Technical Specifications

Parameters and characteristics for this part

Specification	CJT-T-P-HH-ST-TH1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	Twinaxial
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Housing Color	Gold
Mounting Type	Through Hole
Number of Ports	1
Shield Termination	Solder

Part	Shield Termination	Contact Termination	Body Finish	Fastening Type	Voltage Rating	Frequency - Max [Max]	Connector Style	Connector Type	Dielectric Material	Number of Ports	Impedance	Center Contact Plating	Center Contact Material	Mounting Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Body Material
Samtec Inc. CJT-T-P-GF-ST-TH1	Solder	Solder	Gold	Bayonet Lock	200 V	4 GHz	BNC Twinaxial	Jack Male Pin	Polytetrafluoroethylene (PTFE)	1	100 Ohms	Gold	Phosphor Bronze	Through Hole	Gold	-20 C	105 ░C	Brass
Samtec Inc. CJT-T-P-HH-ST-TH1	Solder	Solder	Gold	Bayonet Lock			Twinaxial	Jack Male Pin	Polytetrafluoroethylene (PTFE)	1		Gold	Phosphor Bronze	Through Hole	Gold			Brass
