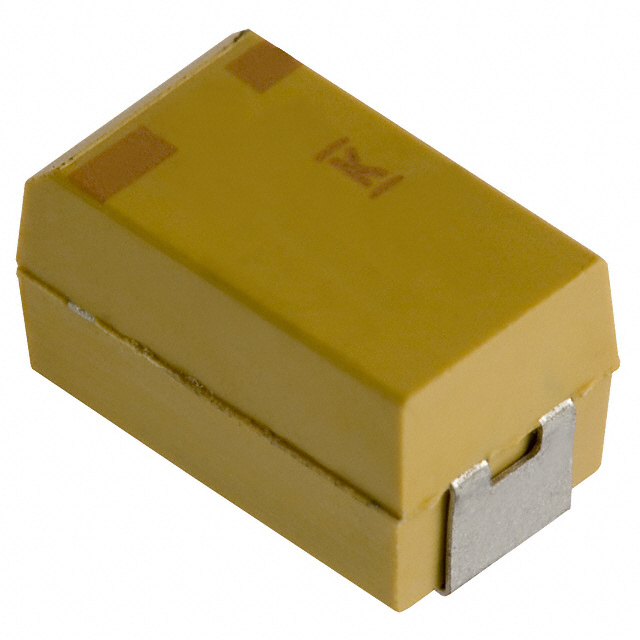

T496X476K016AT

Active

KEMET

CAP TANT 47UF 10% 16V 2917

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T496X476K016AT

Active

KEMET

CAP TANT 47UF 10% 16V 2917

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T496X476K016AT

Capacitance	47 µF
ESR (Equivalent Series Resistance)	900 mOhm
Features	Fail Safe with Built-in Fuse
Height - Seated (Max) [Max]	0.169 "
Height - Seated (Max) [Max]	4.3 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	X
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	10 %
Type	Molded
Voltage - Rated	16 V

T496X Series

Part	Tolerance	Package / Case	Package / Case	Lifetime @ Temp.	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Manufacturer Size Code	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Features	ESR (Equivalent Series Resistance)	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Failure Rate	Ratings
KEMET T496X476M016ATE900	20 %	7343 Metric	2917	2000 Hrs	Surface Mount	-55 °C	125 °C	16 V	X	0.169 "	4.3 mm	Molded	Fail Safe with Built-in Fuse	900 mOhm	47 µF	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T496X476K016AT	10 %	7343 Metric	2917	2000 Hrs	Surface Mount	-55 °C	125 °C	16 V	X	0.169 "	4.3 mm	Molded	Fail Safe with Built-in Fuse	900 mOhm	47 µF	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T496X156M035ATE900	20 %	7343 Metric	2917	2000 Hrs	Surface Mount	-55 °C	125 °C	35 V	X	0.169 "	4.3 mm	Molded	Fail Safe with Built-in Fuse	900 mOhm	15 µF	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T496X476M020AT	20 %	7343 Metric	2917	2000 Hrs	Surface Mount	-55 °C	125 °C	20 V	X	0.169 "	4.3 mm	Molded	Fail Safe with Built-in Fuse		47 µF	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T496X476K020ATE300	10 %	7343 Metric	2917	2000 Hrs	Surface Mount	-55 °C	125 °C	20 V	X	0.169 "	4.3 mm	Molded	Fail Safe with Built-in Fuse		47 µF	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T496X336K020BH61107505	10 %	7343 Metric	2917	2000 Hrs	Surface Mount	-55 °C	125 °C	20 V	X	0.157 in	4 mm	Molded	Fail Safe with Built-in Fuse High Reliability	900 mOhm	33 ÁF	4.3 mm	0.287 "	7.3 mm	0.169 "	B (0.1%)	COTS
KEMET T496X107K016ATE700	10 %	7343 Metric	2917	2000 Hrs	Surface Mount	-55 °C	125 °C	16 V	X	0.169 "	4.3 mm	Molded	Fail Safe with Built-in Fuse	700 mOhm	100 µF	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T496X337M004AT	20 %	7343 Metric	2917	2000 Hrs	Surface Mount	-55 °C	125 °C	4 V	X	0.169 "	4.3 mm	Molded	Fail Safe with Built-in Fuse	700 mOhm	330 µF	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T496X475K050ATE1K5	10 %	7343 Metric	2917	2000 Hrs	Surface Mount	-55 °C	125 °C	50 VDC	X	0.169 "	4.3 mm	Molded	Fail Safe with Built-in Fuse	1.5 Ohm	4.7 µF	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T496X227M010ATE500	20 %	7343 Metric	2917	2000 Hrs	Surface Mount	-55 °C	125 °C	10 V	X	0.169 "	4.3 mm	Molded	Fail Safe with Built-in Fuse	500 mOhms	220 µF	4.3 mm	0.287 "	7.3 mm	0.169 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 2.18

Description

General part information

T496X Series

47 µF Molded Tantalum Capacitors 16 V 2917 (7343 Metric) 900mOhm
