776266-2

Active

TE Connectivity AMP Connectors

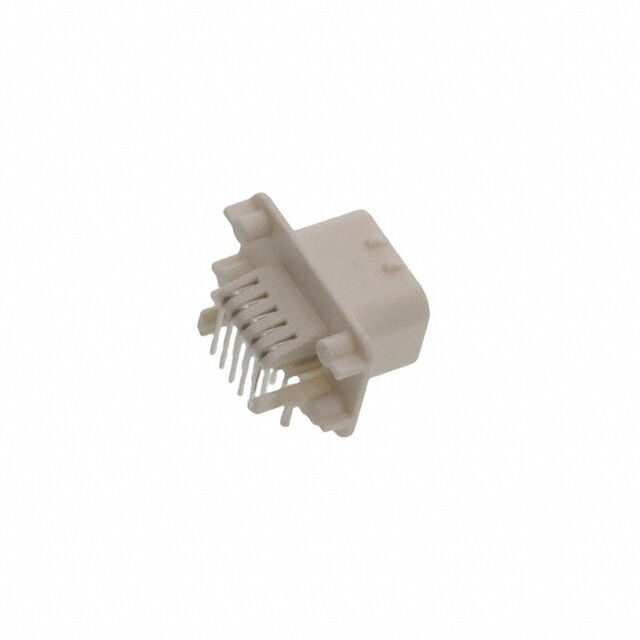

CONN HEADER R/A 14POS 4MM

Deep-Dive with AI

Search across all available documentation for this part.

776266-2

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 14POS 4MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.62
		36	$ 5.62
		108	$ 5.34

Description

General part information

776266 Series

Connector Header Panel Mount, Through Hole, Right Angle 14 position 0.157" (4.00mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	776266-2	776266 Series

Applications	Industrial, Automotive	Industrial, Automotive
Clamp Material - Plating	-	Stainless, Steel
Color	-	Green
Connector Type	Header	Header
Contact Finish - Mating	-	Gold-Palladium
Contact Material	Brass	Brass
Contact Material - Plating	-	Brass - Copper Tin Plated
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current	-	10 A
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Sealable, Board Guide	Interlocking (Side), Sealable, Board Guide
Insulation Color	Natural	Natural, Gray, Blue, Black
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mating Orientation	-	Horizontal with Board
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Levels	-	1
Number of Positions	14	14
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	105 - 125 ░C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Pitch	-	5 mm
Pitch	-	0.197 in
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Positions Per Level	-	2 - 5
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Screw Material - Plating	-	Steel, Galvanized - Chromate Plated
Screw Thread	-	M2.6
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Torque - Screw	-	0.51 Nm
Torque - Screw	-	4.5 Lb-In
Voltage	-	300 V
Voltage Rating	250 VAC	250 VAC
Wire Gauge	-	14 AWG
Wire Gauge	-	22 AWG
Wire Termination	-	Screw - Leaf Spring, Wire Guard
