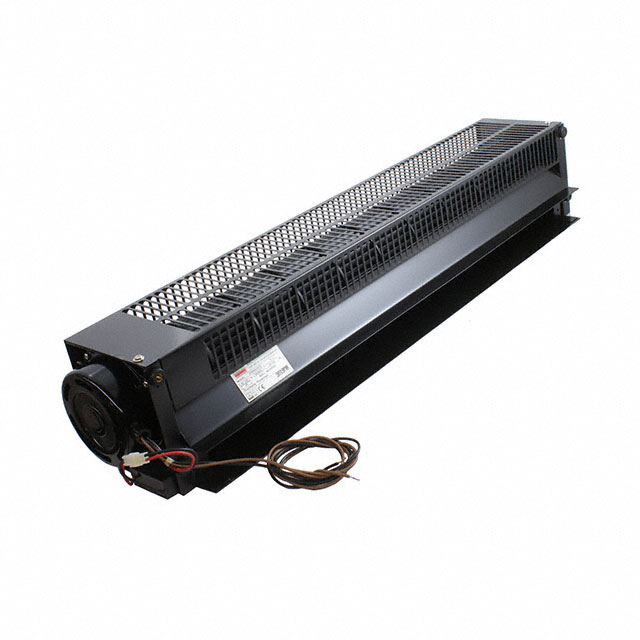

UF9060CBP23H-L
ActiveMechatronics Fan Group
FAN BLWR CF 230VAC 740X150X130MM
Deep-Dive with AI
Search across all available documentation for this part.
UF9060CBP23H-L
ActiveMechatronics Fan Group
FAN BLWR CF 230VAC 740X150X130MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UF9060CBP23H-L | UF9060 Series |
|---|---|---|
| Air Flow | 530 CFM | 530 CFM |
| Air Flow | 14.84 mł/min | 14.84 mł/min |
| Approval Agency | CE, TUV | CE, TUV |
| Bearing Type | Ball | Ball |
| Current Rating (Amps) | 0.7 A | 0.7 - 1.25 A |
| Fan Type | Blower, Cross Flow | Blower, Cross Flow |
| Features | Thermal Overload Protector (TOP), Permanent Split Capacitor Motor | Thermal Overload Protector (TOP), Permanent Split Capacitor Motor |
| Material - Blade | Aluminum | Aluminum |
| Material - Frame | Steel | Steel |
| Noise | 54 dB | 54 dB |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Power (Watts) | 160 W | 160 W |
| RPM | 2100 RPM | 2100 RPM |
| Size / Dimension [x] | 740 mm | 740 mm |
| Size / Dimension [z] | 130 mm | 130 mm |
| Static Pressure | 107.1 Pa | 107.1 Pa |
| Static Pressure | 0.43 in H2O | 0.43 in H2O |
| Termination | 2 Wire Leads | 2 Wire Leads |
| Voltage - Rated | 230 VAC | 120 - 230 VAC |
| Weight | 11 lbs | 11 lbs |
| Weight | 5 kg | 5 kg |
| Width [y] | 125 mm | 125 mm |
UF9060 Series
FAN BLWR CF 120VAC 740X150X130MM
| Part | Power (Watts) | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Bearing Type | Weight | Weight | Features | Width [y] | Fan Type | Approval Agency | RPM | Static Pressure | Static Pressure | Size / Dimension [x] | Size / Dimension [z] | Material - Blade | Termination | Air Flow | Air Flow | Noise | Voltage - Rated | Material - Frame |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Fan Group UF9060CBP12H-L | 160 W | 1.25 A | 70 °C | 70 °C | -40 °C | -40 °C | Ball | 11 lbs | 5 kg | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 125 mm | Blower, Cross Flow | CE, TUV | 2100 RPM | 107.1 Pa | 0.43 in H2O | 740 mm | 130 mm | Aluminum | 2 Wire Leads | 530 CFM | 14.84 mł/min | 54 dB | 120 VAC | Steel |
Mechatronics Fan Group UF9060CBP23H-L | 160 W | 0.7 A | 70 °C | 70 °C | -40 °C | -40 °C | Ball | 11 lbs | 5 kg | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 125 mm | Blower, Cross Flow | CE, TUV | 2100 RPM | 107.1 Pa | 0.43 in H2O | 740 mm | 130 mm | Aluminum | 2 Wire Leads | 530 CFM | 14.84 mł/min | 54 dB | 230 VAC | Steel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 194.20 | |
| 10 | $ 178.87 | |||
| 26 | $ 167.37 | |||
| 50 | $ 164.82 | |||
Description
General part information
UF9060 Series
Fan Blower, Cross Flow 230VAC Rectangular - 740mm L x 130mm H Ball 530.0 CFM (14.84m³/min) 2 Wire Leads
