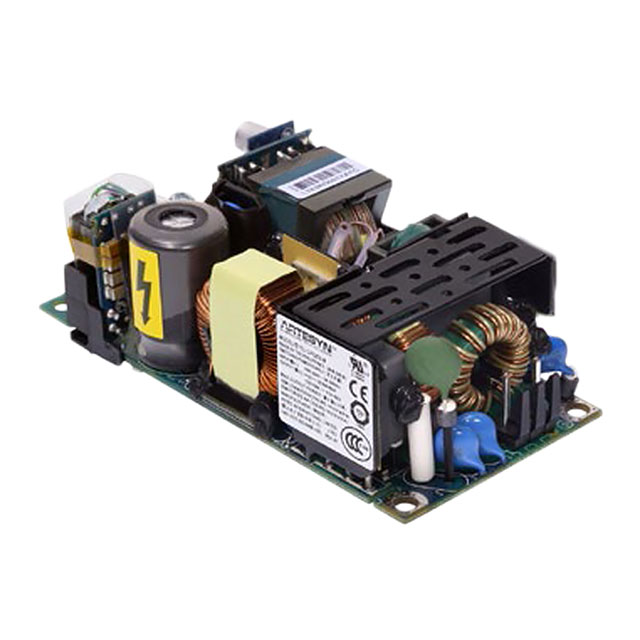

CPS255-M

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 24V 155W

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 24V 155W

Technical Specifications

Parameters and characteristics for this part

Specification	CPS255-M

Applications	ITE (Commercial), Medical
Approval Agency	UL, CCC, TUV, CE, CSA, CB
Efficiency	93 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	1.29 in
Size / Dimension [z]	32.8 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Mounting Type	Applications	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Minimum Load Required	Type	Voltage - Isolation	Features	Efficiency	Number of Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1
ARTESYN / Advanced Energy CPS255-M	Chassis Mount	ITE (Commercial) Medical	CB CCC CE CSA TUV UL	90 VAC	264 VAC		Open Frame	4000 V	Adjustable Output PFC Standby Output Universal Input	93 %	1	50.8 mm	2 in	1.29 in	101.6 mm	4 in	32.8 mm	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
