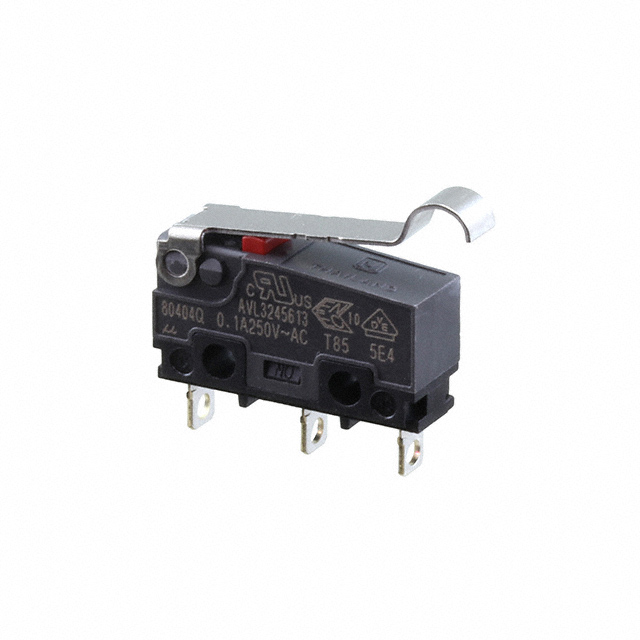

AVL3245613-A
ActivePanasonic Electric Works
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
AVL3245613-A
ActivePanasonic Electric Works
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | AVL3245613-A |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 0.81 mm |
| Differential Travel | 0.032 in |
| Electrical Life | 200000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 55 gf |
| Operating Position | 11.7 mm |
| Operating Position | 0.46 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 1.2 mm |
| Overtravel | 0.047 " |
| Pretravel | 0.11 in |
| Pretravel | 2.8 mm |
| Release Force | 3.5 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
