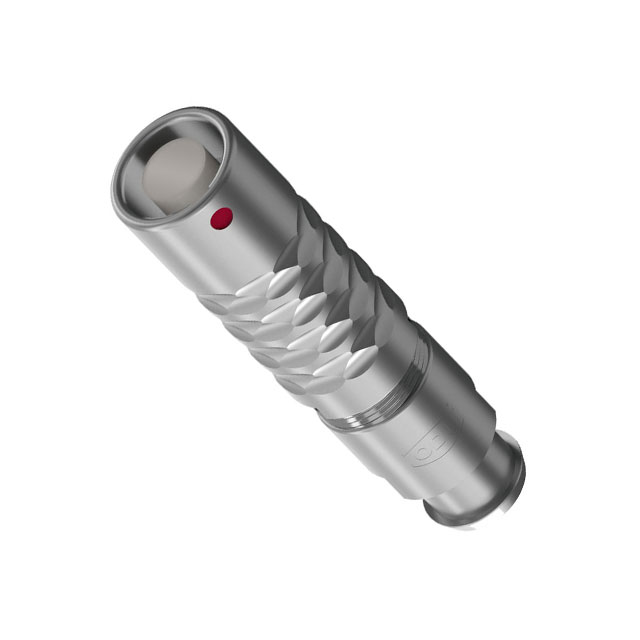

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsODU MINI-SNAP L, K, B Assembly Instruction GB Datasheet +1

K21L0C-P03LPH0-620S

Active

ODU

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsODU MINI-SNAP L, K, B Assembly Instruction GB Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K21L0C-P03LPH0-620S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max] [diameter]	6.2 mm
Cable Opening [Max] [diameter]	0.244 in
Cable Opening [Min] [diameter]	0.197 in
Cable Opening [Min] [diameter]	5 mm
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	12 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	1

K21L0C-P Series

Part	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Applications	Fastening Type	Shielding	Contact Finish - Mating	Color	Number of Positions	Connector Type	Primary Material	Features	Shell Material	Mounting Type	Shell Size - Insert	Insert Material	Current Rating (Amps)	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Ingress Protection	Shell Finish	Cable Opening [custom]	Cable Opening [custom]	Voltage Rating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
ODU K21L0C-P08LFG0-770S	0.276 in	7 mm	7.7 mm	0.303 in	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Shielded	Gold	Silver	8	Receptacle Female Sockets	Metal	Backshell Strain Relief	Brass	Free Hanging (In-Line)	1	Polyetheretherketone (PEEK)	7.5 A	Brass	-40 °C	120 °C	Brass Chrome over Nickel	IP50	Chrome over Nickel
ODU K21L0C-P14LCC0-320S	0.079 in	2 mm	3.2 mm	0.126 in	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Shielded	Gold	Silver	14	Receptacle Female Sockets	Metal	Backshell Strain Relief	Brass	Free Hanging (In-Line)	1	Polyetheretherketone (PEEK)	4 A	Brass	-40 °C	120 °C	Brass Chrome over Nickel	IP50	Chrome over Nickel
ODU K21L0C-P05LJG0-220S					Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Shielded	Gold	Silver		Receptacle Female Sockets	Metal	Backshell Strain Relief	Brass	Free Hanging (In-Line)	1	Polyetheretherketone (PEEK)	7.5 A	Brass	-40 °C	120 °C	Brass Chrome over Nickel	IP50	Chrome over Nickel	0.059 in 0.087 in	1.5 mm 2.2 mm
ODU K21L0C-P08LFG0-220S					Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Shielded	Gold	Silver	8	Receptacle Female Sockets	Metal	Backshell Strain Relief	Brass	Free Hanging (In-Line)	1	Polyetheretherketone (PEEK)	7.5 A	Brass	-40 °C	120 °C	Brass Chrome over Nickel	IP50	Chrome over Nickel	0.059 in 0.087 in	1.5 mm 2.2 mm
ODU K21L0C-P03LPH0-620S	0.197 in	5 mm	6.2 mm	0.244 in	Industrial Medical Military Testing Equipment & Measurement	Push-Pull		Gold	Silver		Receptacle Female Sockets	Metal	Backshell Strain Relief	Brass	Free Hanging (In-Line)	1	Polyetheretherketone (PEEK)	12 A	Brass	-40 °C	120 °C	Brass Chrome over Nickel	IP50	Chrome over Nickel
ODU K21L0C-P04MJG0-420S					Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Unshielded	Gold	Silver	4	Receptacle Female Sockets	Metal	Backshell Strain Relief	Brass	Free Hanging (In-Line)	1	Polyetheretherketone (PEEK)	7.5 A	Brass	-40 °C	120 °C	Brass Chrome over Nickel	IP50	Chrome over Nickel			500 V
ODU K21L0C-P02LPH0-520S					Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Shielded	Gold	Silver	2	Receptacle Female Sockets	Metal	Backshell Strain Relief	Brass	Free Hanging (In-Line)	1	Polyetheretherketone (PEEK)	12 A	Brass	-40 °C	120 °C	Brass Chrome over Nickel	IP50	Chrome over Nickel				0.157 in	0.205 in	4 mm	5.2 mm
ODU K21L0C-P05LJG0-770S	0.276 in	7 mm	7.7 mm	0.303 in	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Shielded	Gold	Silver		Receptacle Female Sockets	Metal	Backshell Strain Relief	Brass	Free Hanging (In-Line)	1	Polyetheretherketone (PEEK)	7.5 A	Brass	-40 °C	120 °C	Brass Chrome over Nickel	IP50	Chrome over Nickel
ODU K21L0C-P06LFG0-420S					Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Shielded	Gold	Silver	6	Receptacle Female Sockets	Metal	Backshell Strain Relief	Brass	Free Hanging (In-Line)	1	Polyetheretherketone (PEEK)	7.5 A	Brass	-40 °C	120 °C	Brass Chrome over Nickel	IP50	Chrome over Nickel
ODU K21L0C-P03LPH0-320S	0.079 in	2 mm	3.2 mm	0.126 in	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Shielded	Gold	Silver		Receptacle Female Sockets	Metal	Backshell Strain Relief	Brass	Free Hanging (In-Line)	1	Polyetheretherketone (PEEK)	12 A	Brass	-40 °C	120 °C	Brass Chrome over Nickel	IP50	Chrome over Nickel
