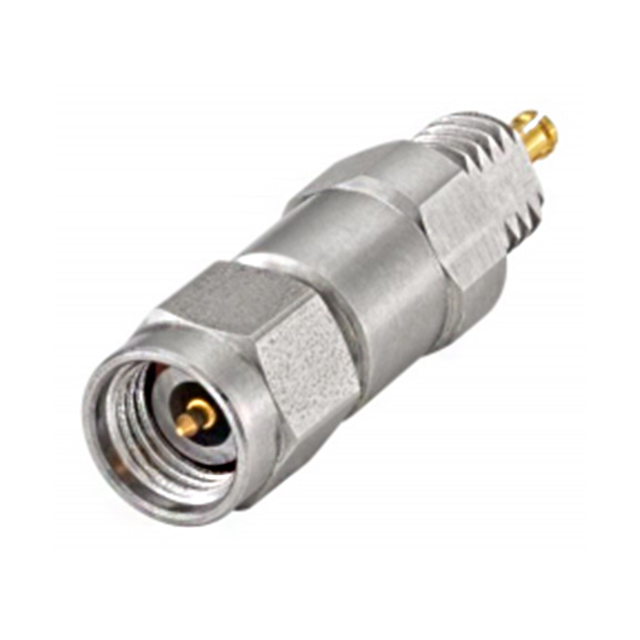

02S123-S00S3

Active

Rosenberger

PRECISION 2.92/MINI-COAX ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92/MINI-COAX ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	02S123-S00S3

Adapter Series	RPC-2.92 to RPC-2.92
Adapter Type	Plug to Plug
Body Finish	Gold
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	2.92 mm
Convert To (Adapter End)	2.92mm (OS-2.9) Plug, Male Pin
Dielectric Material	Polystyrene (PS), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

PRECISION 2.92/MINI-COAX ADAPTER

Part	Conversion Type	Dielectric Material	Center Gender	Body Finish	Insertion Loss	Convert To (Adapter End)	Center Contact Plating	Convert From (Adapter End)	Adapter Series	Body Material	Style	Frequency - Max [Max]	Center Contact Material	Adapter Type	Mating Cycles	Mounting Type	Impedance	Operating Temperature [Max]	Operating Temperature [Min]
Rosenberger 02S123-S00S3	Same Series	Polystyrene (PS), Polytetrafluoroethylene (PTFE)	Male to Male	Gold	0.25 dB	2.92mm (OS-2.9) Plug, Male Pin	Gold	2.92 mm	RPC-2.92 to RPC-2.92	Beryllium Copper, Stainless Steel	Straight	40 GHz	Beryllium Copper	Plug to Plug	500	Free Hanging (In-Line)	50 Ohms	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 341.21

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Plug, Male Pin To 2.92mm (OS-2.9) Plug, Male Pin 50 Ohms
