Part	Mounting Type	Voltage - Test	Configuration	Current - Test	Package Name	Package / Case	Frequency (Max)	Frequency (Min)	Gain	Technology	Power - Output	Voltage - Rated	Current Rating	Channel Count	Configuration - Features
Ampleon USA Inc. BLC9G15LS-400AVTZ	Chassis Mount	32 V	Common Source Dual	810 mA	DFM6	SOT-1258-3	1511 MHz	1452 MHz	16.5 dB	LDMOS	540 W	65 V
Ampleon USA Inc. BLC9G27LS-151AVY	Chassis Mount	28 V	Common Source Dual	280 mA	SOT-1275-3	SOT-1275-3	2.69 GHz	2.5 GHz	15.6 dB	LDMOS	155 W	65 V
Ampleon USA Inc. BLC9H10XS-606AY	Surface Mount	48 V	N-Channel	1.8 A	SOT1250-4	SOT-1250-4	960 MHz	616 MHz	18 dB	LDMOS	600 W	110 VAC	1.4 µA	2	Dual
Ampleon USA Inc. BLC9G27XS-380AVTZ	Surface Mount	30 V		600 mA	SOT-1258-7	SOT-1258-7	2.69 GHz	2.496 GHz	15.5 dB	LDMOS	380 W	65 V	2.8 µA

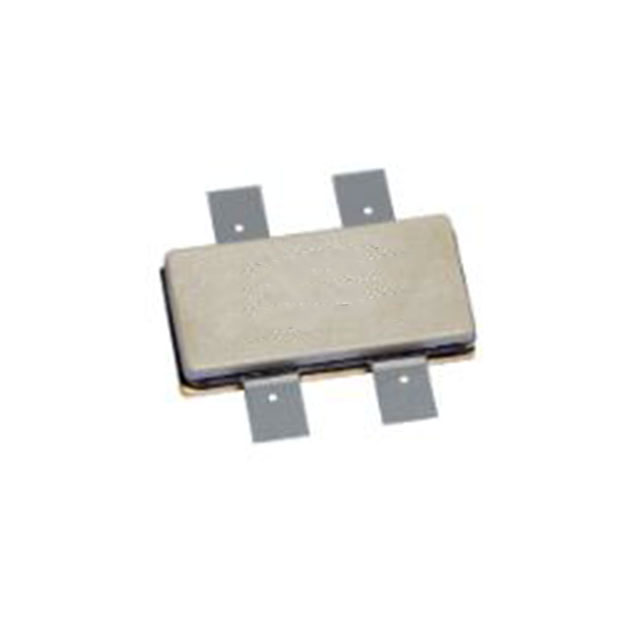

Ampleon USA Inc. BLC9H10XS-60PY
Ampleon USA Inc. BLC9G20LS-120VTY	Surface Mount	28 V		700 mA	SOT1271-2	SOT-1271-2	1.995 GHz	1.805 GHz	18.5 dB	LDMOS	172 W		2.8 µA
Ampleon USA Inc. BLC9H10XS-600AZ	Surface Mount	48 V	Common Source Dual	600 mA	SOT1250-1	SOT1250-1	960 MHz	616 MHz	17.7 dB	LDMOS	600 W	105 V	1.4 µA
Ampleon USA Inc. BLC9H10XS-500AY	Surface Mount	50 V	N-Channel		SOT1273-1	SOT-1273-1	960 MHz	617 MHz	18.9 dB	LDMOS	500 W	105 V	1.4 µA	2	Dual
Ampleon USA Inc. BLC9G20XS-400AVTZ	Surface Mount	32 V	Common Source Dual	800 mA	SOT1258-4	SOT-1258-4	1.88 GHz	1.81 GHz	16.2 dB	LDMOS	570 W	65 V
Ampleon USA Inc. BLC9G20LS-120VZ	Chassis Mount	28 V		700 mA	SOT-1275-3	SOT-1275-3	1.88 GHz	1.81 GHz	19.2 dB	LDMOS	120 W	65 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
