770602-5
ObsoleteTE Connectivity AMP Connectors

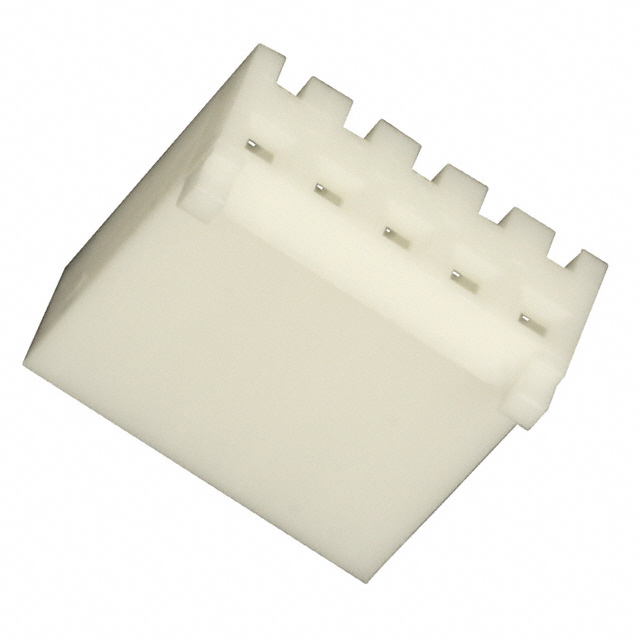

CONN RCPT HSG 5POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
770602-5
ObsoleteTE Connectivity AMP Connectors
CONN RCPT HSG 5POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 770602-5 | 770602 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Locking Ramp | Locking Ramp |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | - | 2 - 26 |
| Number of Positions | - | 16 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
770602 Series
CONN RCPT HSG 12POS 2.54MM
| Part | Number of Rows | Pitch [x] | Pitch [x] | Contact Termination | Fastening Type | Note | Connector Type | Number of Positions | Color | Mounting Type | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-770602-2 | 1 | 2.54 mm | 0.1 in | Crimp | Locking Ramp | Contacts Not Included | Receptacle | 12 | Natural | Free Hanging (In-Line) | Female Socket | |
TE Connectivity AMP Connectors 770602-3 | 1 | 2.54 mm | 0.1 in | Crimp | Locking Ramp | Contacts Not Included | Receptacle | Natural | Free Hanging (In-Line) | Female Socket | ||
TE Connectivity AMP Connectors 2-770602-4 | 1 | 2.54 mm | 0.1 in | Crimp | Locking Ramp | Contacts Not Included | Receptacle | 24 | Natural | Free Hanging (In-Line) | Female Socket | |
TE Connectivity AMP Connectors 1-770602-6 | 1 | 2.54 mm | 0.1 in | Crimp | Locking Ramp | Contacts Not Included | Receptacle | Natural | Free Hanging (In-Line) | Female Socket | 16 | |
TE Connectivity AMP Connectors 1-770602-3 | 1 | 2.54 mm | 0.1 in | Crimp | Locking Ramp | Contacts Not Included | Receptacle | 13 | Natural | Free Hanging (In-Line) | Female Socket | |
TE Connectivity AMP Connectors 2-770602-5 | 1 | 2.54 mm | 0.1 in | Crimp | Locking Ramp | Contacts Not Included | Receptacle | Natural | Free Hanging (In-Line) | Female Socket | ||
TE Connectivity AMP Connectors 770602-8 | 1 | 2.54 mm | 0.1 in | Crimp | Locking Ramp | Contacts Not Included | Receptacle | 8 | Natural | Free Hanging (In-Line) | Female Socket | |
TE Connectivity AMP Connectors 2-770602-3 | 1 | 2.54 mm | 0.1 in | Crimp | Locking Ramp | Contacts Not Included | Receptacle | 23 | Natural | Free Hanging (In-Line) | Female Socket | |
TE Connectivity AMP Connectors 2-770602-6 | 1 | 2.54 mm | 0.1 in | Crimp | Locking Ramp | Contacts Not Included | Receptacle | 26 | Natural | Free Hanging (In-Line) | Female Socket | |
TE Connectivity AMP Connectors 770602-9 | 1 | 2.54 mm | 0.1 in | Crimp | Locking Ramp | Contacts Not Included | Receptacle | 9 | Natural | Free Hanging (In-Line) | Female Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
770602 Series
5 Rectangular Connectors - Housings Receptacle Natural 0.100" (2.54mm)
