C2464A.41.10

Active

Prysmian Group

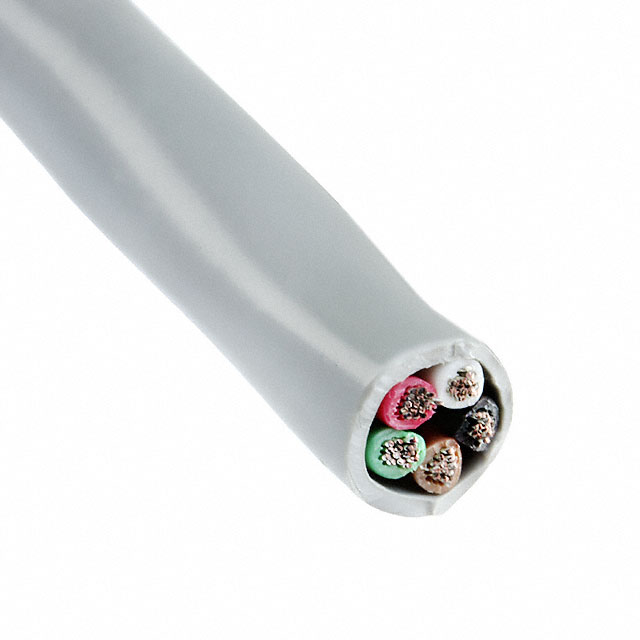

CABLE 5COND 24AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 5COND 24AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C2464A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	4.65 mm
Jacket (Insulation) Diameter [diameter]	0.183 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	5
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Usage	Control, Communication
Voltage	300 V
Wire Gauge	24 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Usage	Voltage	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Ratings	Conductor Insulation	Conductor Material	Cable Type	Jacket (Insulation) Material
Prysmian Group C2464A.41.10	-20 C	80 C	24 AWG	Communication Control	300 V	5	32 AWG	7	Gray	4.65 mm	0.183 in	1000 ft	304.8 m	ASTM B-33	Poly-Vinyl Chloride (PVC)	Copper Annealed Tinned	Multi-Conductor	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Conductor Multi-Conductor Cable Gray 24 AWG 1000.0' (304.8m)

Technical documentation and resources

No documents available
