SMS-125-01-L-D
ActiveSamtec Inc.

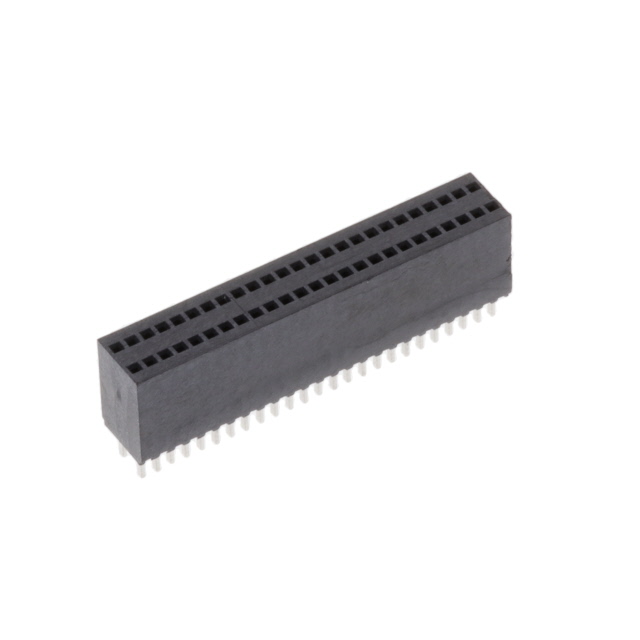

CONN SKT 1.27MM PCB 50POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMS-125-01-L-D
ActiveSamtec Inc.
CONN SKT 1.27MM PCB 50POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMS-125-01-L-D |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post | 2.54 mm |
| Contact Length - Post | 0.1 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 5 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.335 " |
| Insulation Height | 8.51 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.64 | |
| 10 | $ 7.99 | |||
| 25 | $ 7.55 | |||
| 50 | $ 7.28 | |||
| 100 | $ 6.79 | |||
Description
General part information
SMS-125 Series
50 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
