SSF-LXH555GD

Active

Lumex Opto/Components Inc.

LED CBI 1.8MM GRN RA

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH555GD

Active

Lumex Opto/Components Inc.

LED CBI 1.8MM GRN RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSF-LXH555 Series

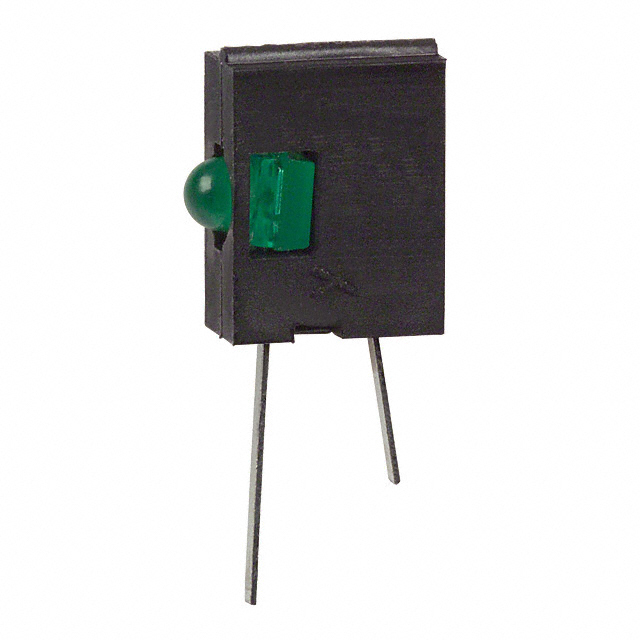

LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.1V 20mA Round with Domed Top 1.80mm Dia Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available

Specification	SSF-LXH555GD	SSF-LXH555 Series

Color	Green	Red, Yellow, Green
Configuration	Single	Single
Lens Size [diameter]	1.8 mm	1.8 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused, Red
Millicandela Rating	8 mcd	8 - 45 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole, Bottom Entry
Viewing Angle	60 °	60 °
Voltage Rating	2.1 V	2 - 2.1 V
Wavelength - Peak	565 nm	565 - 636 nm

Part	Lens Size [diameter]	Lens Type	Mounting Type	Millicandela Rating	Color	Lens Style	Voltage Rating	Viewing Angle	Wavelength - Peak	Configuration
Lumex Opto/Components Inc. SSF-LXH555ID	1.8 mm	Diffused, Tinted	Through Hole, Right Angle	8 mcd	Red	Round with Domed Top	2 V	60 °	635 nm	Single
Lumex Opto/Components Inc. SSF-LXH555YD	1.8 mm	Diffused, Tinted	Through Hole, Right Angle	8 mcd	Yellow	Round with Domed Top	2.1 V	60 °	585 nm	Single
Lumex Opto/Components Inc. SSF-LXH555GD	1.8 mm	Diffused, Tinted	Through Hole, Right Angle	8 mcd	Green	Round with Domed Top	2.1 V	60 °	565 nm	Single
Lumex Opto/Components Inc. SSF-LXH555SID	1.8 mm	Diffused, Red	Through Hole, Bottom Entry	45 mcd	Red	Round with Domed Top	2 V	60 °	636 nm	Single
