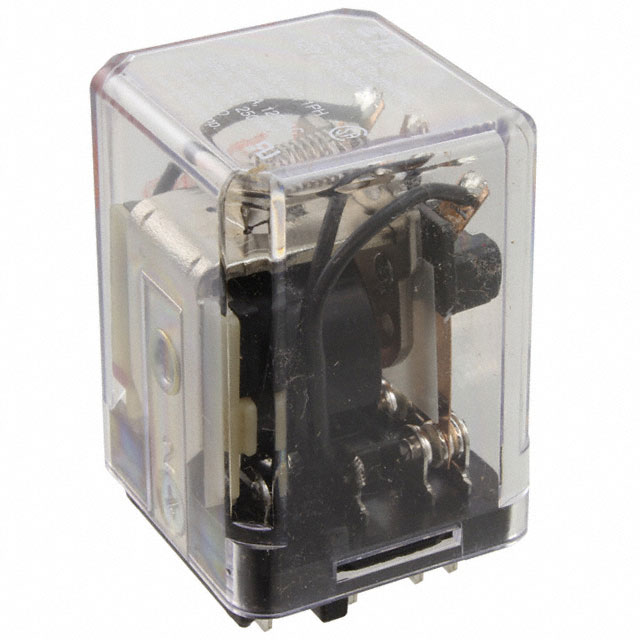

KU93-4138

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 3PDT 10A 120V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 3PDT 10A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	KU93-4138

Approval Agency	CSA, UR
Coil Current	24 mA
Coil Resistance	5 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	3PDT (3 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A
Load - Max Switching	2400 VA, 280 W
Mounting Type	Socketable
Must Operate Voltage	90 VAC
Operate Time	15 ms
Operating Temperature [Max] [custom]	45 °C
Operating Temperature [Min] [custom]	-45 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	240 VAC, 28 VDC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)

Part	Termination Style	Coil Current	Switching Voltage	Contact Rating (Current)	Must Operate Voltage	Coil Type	Coil Resistance	Contact Form	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Operate Time	Relay Type	Approval Agency	Mounting Type	Load - Max Switching	Release Time	Contact Material	Coil Voltage
TE Connectivity Potter & Brumfield Relays KU93-4138	Plug In Quick Connect - 0.187" (4.7mm)	24 mA	28 VDC 240 VAC	10 A	90 VAC	Non Latching	5 kOhms	3PDT (3 Form C)	45 °C	-45 °C	15 ms	General Purpose	CSA UR	Socketable	280 W 2400 VA	10 ms	Silver Cadmium Oxide (AgCdO)	120 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay 3PDT (3 Form C) 120VAC Coil Socketable
