1241170-6
ActiveTE Connectivity AMP Connectors

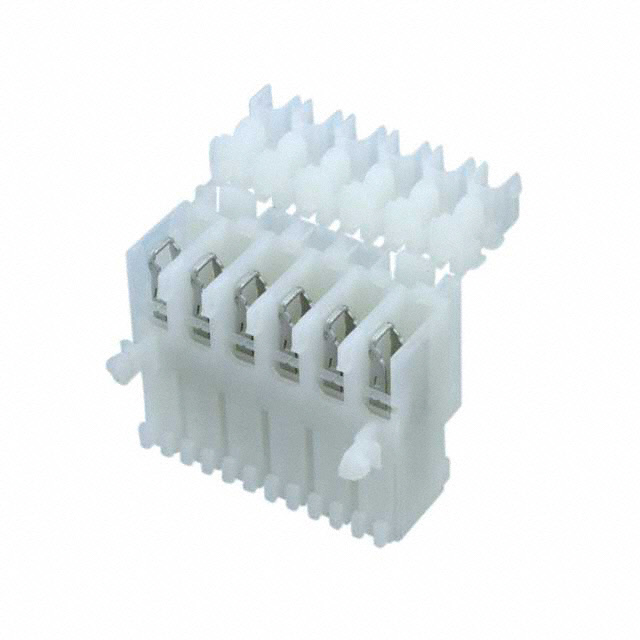

CONN RCPT 6POS IDC TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241170-6
ActiveTE Connectivity AMP Connectors
CONN RCPT 6POS IDC TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241170-6 | 1241170 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Tin | Tin |
| Contact Type | Blade Pin | Blade Pin |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Dual Wire Exit | Dual Wire Exit |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 2 - 6 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Wire Type | Discrete | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1241170 Series
CONN RCPT 4POS IDC TIN
| Part | Connector Type | Color | Features | Number of Positions | Mounting Type | Wire Type | Pitch [x] | Pitch [x] | Contact Type | Cable Termination | Contact Finish | Fastening Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241170-4 | Receptacle | Natural | Dual Wire Exit | 4 | Free Hanging (In-Line) | Discrete | 5 mm | 0.197 in | Blade Pin | IDC | Tin | Latch Lock | 1 |
TE Connectivity AMP Connectors 1241170-2 | Receptacle | Natural | Dual Wire Exit | 2 | Free Hanging (In-Line) | Discrete | 5 mm | 0.197 in | Blade Pin | IDC | Tin | Latch Lock | 1 |
TE Connectivity AMP Connectors 1-1241170-3 | Receptacle | Natural | Dual Wire Exit | Free Hanging (In-Line) | Discrete | 5 mm | 0.197 in | Blade Pin | IDC | Tin | Latch Lock | 1 | |
TE Connectivity AMP Connectors 1241170-6 | Receptacle | Natural | Dual Wire Exit | 6 | Free Hanging (In-Line) | Discrete | 5 mm | 0.197 in | Blade Pin | IDC | Tin | Latch Lock | 1 |
TE Connectivity AMP Connectors 1-1241170-5 | Receptacle | Natural | Dual Wire Exit | Free Hanging (In-Line) | Discrete | 5 mm | 0.197 in | Blade Pin | IDC | Tin | Latch Lock | 1 | |
TE Connectivity AMP Connectors 5-1241170-5 | Receptacle | Natural | Dual Wire Exit | Free Hanging (In-Line) | Discrete | 5 mm | 0.197 in | Blade Pin | IDC | Tin | Latch Lock | 1 |
Description
General part information
1241170 Series
6 Position Rectangular Receptacle Connector IDC Tin
