Q-0D04T0003060i

Active

Amphenol Custom Cable

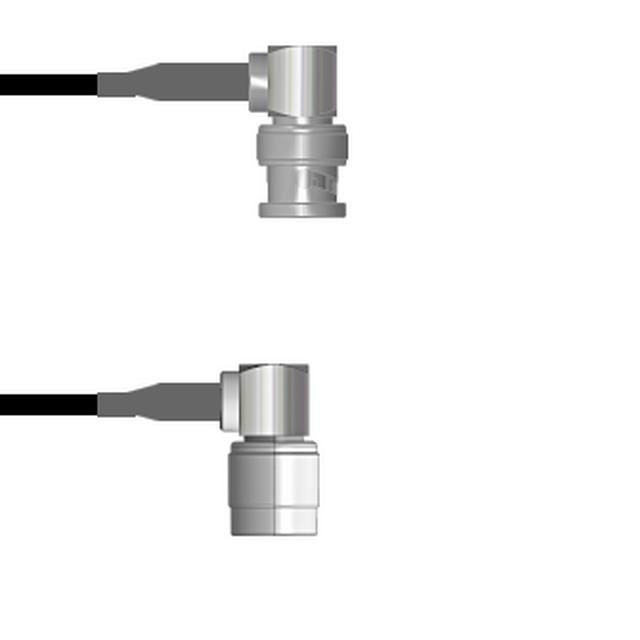

CBL ASSY BNC-TNC PLUG-PLUG 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D04T0003060i

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLUG-PLUG 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D04T0003060i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0D04T0 Series

Part	Color	Frequency - Max [Max]	Length	Length	Length	1st Connector Mounting Type	1st Contact Gender	Overall Impedance	Style	Cable Type	2nd Connector Mounting Type	Features	1st Connector	2nd Contact Gender	2nd Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-0D04T0003002M	Black	4 GHz	6.6 ft	78.7 in	2 m	Free Hanging (In-Line)	Male	50 Ohms	BNC to TNC	RG-174	Free Hanging (In-Line)	Shielded	BNC Plug Right Angle	Male	TNC Plug Right Angle
Amphenol Custom Cable Q-0D04T0003108i	Black	4 GHz	9 ft	108 in	2.7 m	Free Hanging (In-Line)	Male	50 Ohms	BNC to TNC	RG-174	Free Hanging (In-Line)	Shielded	BNC Plug Right Angle	Male	TNC Plug Right Angle
Amphenol Custom Cable Q-0D04T0003003M	Black	4 GHz	9.8 '	118.1 in	3 m	Free Hanging (In-Line)	Male	50 Ohms	BNC to TNC	RG-174	Free Hanging (In-Line)	Shielded	BNC Plug Right Angle	Male	TNC Plug Right Angle
Amphenol Custom Cable Q-0D04T0003018i	Black	4 GHz				Free Hanging (In-Line)	Male	50 Ohms	BNC to TNC	RG-174	Free Hanging (In-Line)	Shielded	BNC Plug Right Angle	Male	TNC Plug Right Angle	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0D04T0003060i	Black	4 GHz	5 ft	5 '	1.5 m	Free Hanging (In-Line)	Male	50 Ohms	BNC to TNC	RG-174	Free Hanging (In-Line)	Shielded	BNC Plug Right Angle	Male	TNC Plug Right Angle
Amphenol Custom Cable Q-0D04T0005018i	Copper	4 GHz				Free Hanging (In-Line)	Male	50 Ohms	BNC to TNC	RG-316	Free Hanging (In-Line)	Shielded	BNC Plug Right Angle	Male	TNC Plug Right Angle	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0D04T0005036i	Copper	4 GHz		36 in	91.44 cm	Free Hanging (In-Line)	Male	50 Ohms	BNC to TNC	RG-316	Free Hanging (In-Line)	Shielded	BNC Plug Right Angle	Male	TNC Plug Right Angle
Amphenol Custom Cable Q-0D04T0005084i	Copper	4 GHz	7 ft	84 in	2.1 m	Free Hanging (In-Line)	Male	50 Ohms	BNC to TNC	RG-316	Free Hanging (In-Line)	Shielded	BNC Plug Right Angle	Male	TNC Plug Right Angle
Amphenol Custom Cable Q-0D04T0003009i	Black	4 GHz		9 "	228.6 mm	Free Hanging (In-Line)	Male	50 Ohms	BNC to TNC	RG-174	Free Hanging (In-Line)	Shielded	BNC Plug Right Angle	Male	TNC Plug Right Angle
Amphenol Custom Cable Q-0D04T0005001M	Copper	4 GHz	3.3 ft	39.4 in	1 m	Free Hanging (In-Line)	Male	50 Ohms	BNC to TNC	RG-316	Free Hanging (In-Line)	Shielded	BNC Plug Right Angle	Male	TNC Plug Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 65.24
		25	$ 63.97
		50	$ 62.70
		100	$ 61.43
		250	$ 60.16

Description

General part information

Q-0D04T0 Series

Cable Assembly Coaxial BNC to TNC RG-174 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
