LTMM-120-02-G-D

Active

Samtec Inc.

CONN HEADER VERT 40POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLTMM Datasheet Datasheet +2

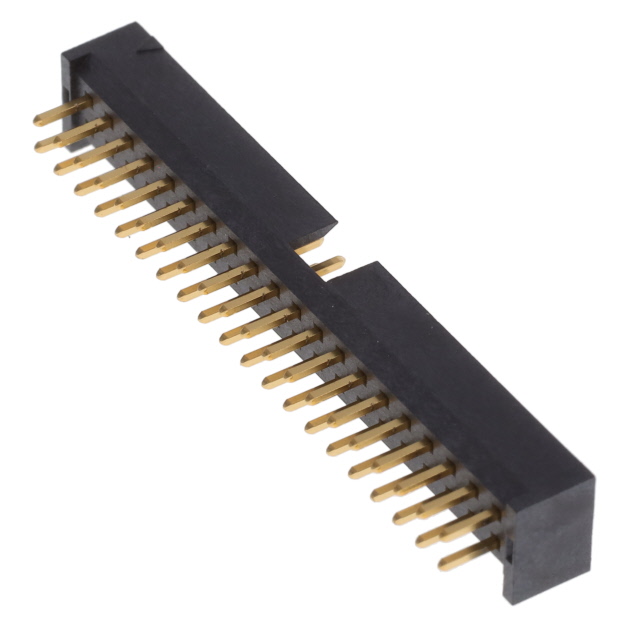

LTMM-120-02-G-D

Active

Samtec Inc.

CONN HEADER VERT 40POS 2MM

Deep-Dive with AI

DocumentsLTMM Datasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTMM-120-02-G-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.117 in
Contact Length - Post	2.97 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	4.83 mm
Insulation Height	0.19 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

LTMM-120 Series

Part	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Type	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Mounting Type	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Material	Number of Positions Loaded	Termination	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Features	Connector Type	Shrouding	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. LTMM-120-01-S-D	0.1 in	2.54 mm	Square	Male Pin	Push-Pull	0.079 in	2 mm	2	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	Through Hole	Black	105 ░C	-55 °C	4.83 mm	0.19 in	Phosphor Bronze	All	Solder	0.09 "	2.29 mm	Gold	Tin	0.079 in	2 mm	Keying Slot	Header	Shrouded - 4 Wall	40
Samtec Inc. LTMM-120-02-F-D-RA	0.12 in	3.05 mm	Square	Male Pin	Push-Pull	0.079 in	2 mm	2	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	Black	105 ░C	-55 °C	6.03 mm	0.237 in	Phosphor Bronze	All	Solder	0.09 "	2.29 mm	Gold	Tin	0.079 in	2 mm	Keying Slot	Header	Shrouded - 4 Wall	40
Samtec Inc. LTMM-120-02-L-D-SM-K-TR	0.12 in	3.05 mm	Square	Male Pin	Push-Pull	0.079 in	2 mm	2	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Surface Mount	Black	105 ░C	-55 °C	4.83 mm	0.19 in	Phosphor Bronze	All	Solder			Gold	Tin	0.079 in	2 mm	Keying Slot Pick and Place	Header	Shrouded - 4 Wall	40
Samtec Inc. LTMM-120-02-G-D-SM-LC	0.12 in	3.05 mm	Square	Male Pin	Push-Pull	0.079 in	2 mm	2	20 µin	0.51 µm	Liquid Crystal Polymer (LCP)	Surface Mount	Black	125 °C	-55 °C	4.83 mm	0.19 in	Phosphor Bronze	All	Solder			Gold	Gold	0.079 in	2 mm	Board Lock Keying Slot	Header	Shrouded - 4 Wall	40	3 µin	0.076 µm
Samtec Inc. LTMM-120-02-G-D	0.12 in	3.05 mm	Square	Male Pin	Push-Pull	0.079 in	2 mm	2	20 µin	0.51 µm	Liquid Crystal Polymer (LCP)	Through Hole	Black	125 °C	-55 °C	4.83 mm	0.19 in	Phosphor Bronze	All	Solder	0.117 in	2.97 mm	Gold	Gold	0.079 in	2 mm	Keying Slot	Header	Shrouded - 4 Wall	40	3 µin	0.076 µm
Samtec Inc. LTMM-120-01-F-D-RA	0.1 in	2.54 mm	Square	Male Pin	Push-Pull	0.079 in	2 mm	2	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	Black	105 ░C	-55 °C	6.03 mm	0.237 in	Phosphor Bronze	All	Solder	0.09 "	2.29 mm	Gold	Tin	0.079 in	2 mm	Keying Slot	Header	Shrouded - 4 Wall	40
Samtec Inc. LTMM-120-01-S-D-SM	0.1 in	2.54 mm	Square	Male Pin	Push-Pull	0.079 in	2 mm	2	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	Surface Mount	Black	105 ░C	-55 °C	4.83 mm	0.19 in	Phosphor Bronze	All	Solder			Gold	Tin	0.079 in	2 mm	Keying Slot	Header	Shrouded - 4 Wall	40
Samtec Inc. LTMM-120-02-S-D	0.12 in	3.05 mm	Square	Male Pin	Push-Pull	0.079 in	2 mm	2	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	Through Hole	Black	105 ░C	-55 °C	4.83 mm	0.19 in	Phosphor Bronze	All	Solder	0.117 in	2.97 mm	Gold	Tin	0.079 in	2 mm	Keying Slot	Header	Shrouded - 4 Wall	40
Samtec Inc. LTMM-120-02-F-D-SM	0.12 in	3.05 mm	Square	Male Pin	Push-Pull	0.079 in	2 mm	2	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	Surface Mount	Black	105 ░C	-55 °C	4.83 mm	0.19 in	Phosphor Bronze	All	Solder			Gold	Tin	0.079 in	2 mm	Keying Slot	Header	Shrouded - 4 Wall	40
Samtec Inc. LTMM-120-02-S-D-RA	0.12 in	3.05 mm	Square	Male Pin	Push-Pull	0.079 in	2 mm	2	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	Black	105 ░C	-55 °C	6.03 mm	0.237 in	Phosphor Bronze	All	Solder	0.09 "	2.29 mm	Gold	Tin	0.079 in	2 mm	Keying Slot	Header	Shrouded - 4 Wall	40
