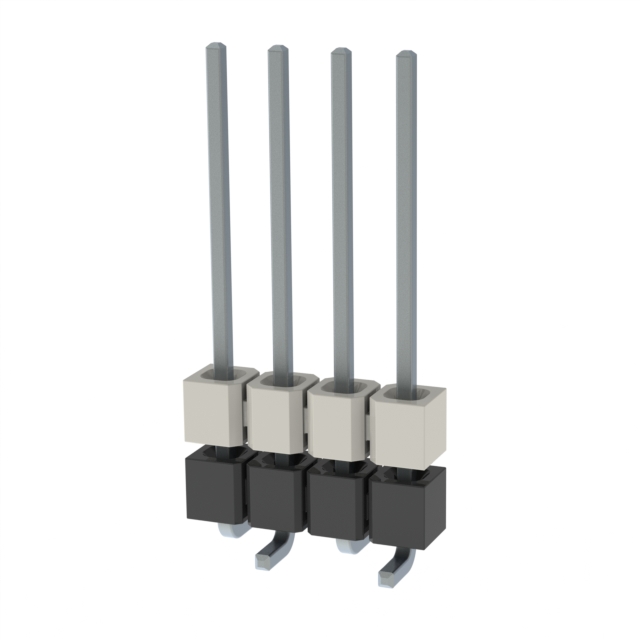

HW-04-10-T-S-290-SM

Active

Samtec Inc.

CONN HDR 4POS 0.1 STACK SMD TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-04-10-T-S-290-SM

Active

Samtec Inc.

CONN HDR 4POS 0.1 STACK SMD TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-04-10-T-S-290-SM

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin	19.431 mm
Length - Overall Pin	0.765 in
Length - Post (Mating) [x]	0.475 in
Length - Post (Mating) [x]	12.065 mm
Length - Stack Height [x]	7.366 mm
Length - Stack Height [x]	0.29 in
Mounting Type	Surface Mount
Number of Positions	4
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-04-10 Series

Part	Pitch [x]	Pitch [x]	Mounting Type	Termination	Number of Positions	Contact Finish - Post (Mating)	Color	Row Spacing [x]	Row Spacing	Length - Overall Pin [x]	Length - Overall Pin	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [z]	Length - Stack Height [z]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Tail [custom]	Length - Tail [custom]	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin	Length - Tail [x]	Length - Tail [x]
Samtec Inc. HW-04-10-G-D-475-125	2.54 mm	0.1 in	Through Hole	Solder	8	Gold	Black	0.1 in	2.54 mm	0.83 in	21.082 mm	2	0.23 in	5.842 mm	0.475 in	12.065 mm	0.25 Ám	10 Áin	0.125 in	3.175 mm
Samtec Inc. HW-04-10-G-D-393-SM-A	2.54 mm	0.1 in	Surface Mount	Solder	8	Gold	Black	0.1 in	2.54 mm		19.431 mm	2	0.372 in	9.449 mm			0.25 Ám	10 Áin			0.393 in	9.982 mm	0.765 in
Samtec Inc. HW-04-10-T-D-250-SM	2.54 mm	0.1 in	Surface Mount	Solder	8	Tin	Black	0.1 in	2.54 mm		19.431 mm	2	0.515 in	13.081 mm							0.25 in	6.35 mm	0.765 in
Samtec Inc. HW-04-10-T-S-290-SM	2.54 mm	0.1 in	Surface Mount	Solder	4	Tin	Black				19.431 mm	1	0.475 in	12.065 mm							0.29 in	7.366 mm	0.765 in
Samtec Inc. HW-04-10-S-D-535-SM	2.54 mm	0.1 in	Surface Mount	Solder	8	Gold	Black	0.1 in	2.54 mm		19.431 mm	2	0.23 in	5.842 mm			0.76 µm	30 µin			0.535 in	13.589 mm	0.765 in
Samtec Inc. HW-04-10-T-D-590-SM	2.54 mm	0.1 in	Surface Mount	Solder	8	Tin	Black	0.1 in	2.54 mm		19.431 mm	2	0.175 in	4.445 mm							0.59 in	14.986 mm	0.765 in
Samtec Inc. HW-04-10-S-D-550-SM-A	2.54 mm	0.1 in	Surface Mount	Solder	8	Gold	Black	0.1 in	2.54 mm		19.431 mm	2	0.215 in	5.791 mm			0.76 µm	30 µin			0.55 in	13.97 mm	0.765 in
Samtec Inc. HW-04-10-F-D-465-SM-A	2.54 mm	0.1 in	Surface Mount	Solder	8	Gold	Black	0.1 in	2.54 mm		19.431 mm	2	0.3 in	7.62 mm			0.076 Ám	3 Áin			0.465 in	11.811 mm	0.765 in
Samtec Inc. HW-04-10-G-D-522-SM-LC	2.54 mm	0.1 in	Surface Mount	Solder	8	Gold	Black	0.1 in	2.54 mm		19.431 mm	2	0.243 in	6.172 mm			0.25 Ám	10 Áin			0.522 in	13.259 mm	0.765 in
Samtec Inc. HW-04-10-L-D-450-100	2.54 mm	0.1 in	Through Hole	Solder	8	Gold	Black	0.1 in	2.54 mm	0.83 in	21.082 mm	2	0.28 in	7.112 mm	0.45 in	11.43 mm	0.25 Ám	10 Áin						0.1 "	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HW-04-10 Series

4 Position Header Spacer Connector 0.100" (2.54mm) Tin Surface Mount
