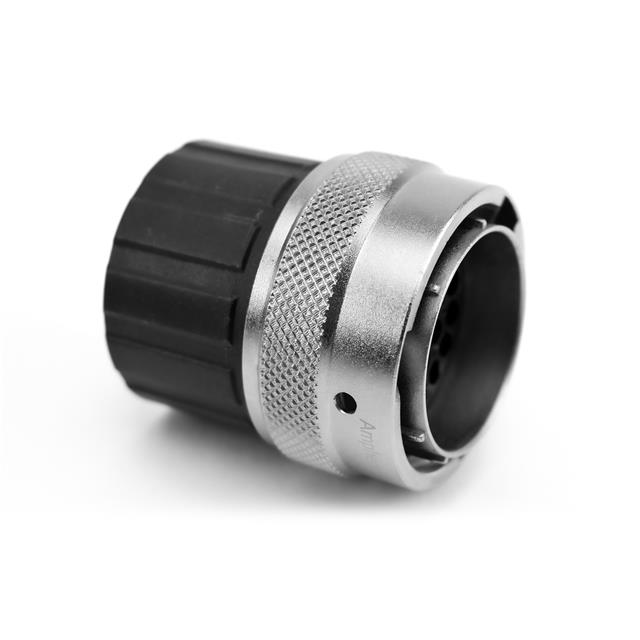

RT061619PNHEC03R

Active

Amphenol Sine Systems Corp

PLUG, 19 POSITION, MALE, SHELL S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ecomate-Family-Flyer-2019 +1

RT061619PNHEC03R

Active

Amphenol Sine Systems Corp

PLUG, 19 POSITION, MALE, SHELL S

Deep-Dive with AI

DocumentsDatasheet ecomate-Family-Flyer-2019 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT061619PNHEC03R

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	19
Shell Size - Insert [Min]	16
Shielding	Shielded
Type	For Male Pins

RT061619 Series

Part	Features	Type	Connector Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Orientation	Shell Finish	Insert Material	Fastening Type	Mounting Type	Ingress Protection	Contact Shape	Note	Contact Size	Contact Type	Shielding	Number of Positions	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Shell Material	Includes	Primary Material	Backshell Material, Plating	Contact Finish Thickness - Mating	Termination	Applications	Color	Voltage Rating	Contact Material	Current Rating (Amps)	Contact Finish - Mating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Amphenol Sine Systems Corp RT061619PNHEC03R	Backshell Coupling Nut	For Male Pins	Plug Housing	16	19	N	Nickel	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Circular	Contacts Not Included	16	Crimp	Shielded	19	UL94 V-0	125 °C	-40 °C	Silver	Zinc Alloy
Amphenol Sine Systems Corp RT061619SNH03	Coupling Nut	For Female Sockets	Plug Housing	16	19	N	Nickel	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Circular	Contacts Not Included	16	Crimp	Shielded	19	UL94 V-0	125 °C	-40 °C	Silver	Zinc Alloy	1 Connector 1 Gasket 1 O-Ring
Amphenol Sine Systems Corp RT061619PNHEC	Backshell Coupling Nut	For Male Pins	Plug Housing	16	19	N	Nickel	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Circular	Contacts Not Included	16	Crimp	Shielded	19	UL94 V-0	105 ░C	-40 °C	Silver	Zinc Alloy
Amphenol Sine Systems Corp RT061619PNHEC03	Coupling Nut	For Male Pins	Plug Housing	16	19	N	Nickel	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Circular	Contacts Not Included	16	Crimp	Shielded	19	UL94 V-0	125 °C	-40 °C	Silver	Zinc Alloy		Metal
Amphenol Sine Systems Corp RT061619SNHEC	Backshell Coupling Nut	For Female Sockets	Plug Housing	16	19	N	Nickel	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Circular	Contacts Not Included	16	Crimp	Shielded	19	UL94 V-0	105 ░C	-40 °C	Silver	Zinc Alloy
Amphenol Sine Systems Corp RT061619SNHEC03	Coupling Nut	For Female Sockets	Plug Housing	16	19	N	Nickel	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Circular	Contacts Not Included	16	Crimp	Shielded	19	UL94 V-0	125 °C	-40 °C	Silver	Zinc Alloy		Metal
Amphenol Sine Systems Corp RT061619PNH03SS-K	Backshell Coupling Nut		Male Pins Plug	16	19	N	Nickel	Polyamide (PA66) Nylon 6/6	Bayonet Lock	Free Hanging (In-Line)	IP67 IP69K					Shielded	19	UL94 V-0	105 ░C	-40 °C		Zinc Die Cast		Metal	Nickel Zinc Die Cast	Flash	Crimp	Aerospace Automation Industrial Telecom Transportation	Silver	250 VAC	Brass	13 A	Gold	0.394 in	14 mm	10 mm	0.551 in
Amphenol Sine Systems Corp RT061619SNHEC03R	Backshell Coupling Nut	For Female Sockets	Plug Housing	16	19	N	Nickel	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Circular	Contacts Not Included	16	Crimp	Shielded	19	UL94 V-0	125 °C	-40 °C	Silver	Zinc Alloy
Amphenol Sine Systems Corp RT061619PNHECR
Amphenol Sine Systems Corp RT061619PNH03	Coupling Nut	For Male Pins	Plug Housing	16	19	N	Nickel	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Circular	Contacts Not Included	16	Crimp	Shielded	19	UL94 V-0	125 °C	-40 °C	Silver	Zinc Alloy	1 Connector 1 Gasket 1 O-Ring

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 13.91
		10	$ 12.06
		25	$ 11.66

Description

General part information

RT061619 Series

19 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
