2909525
ActivePhoenix Contact

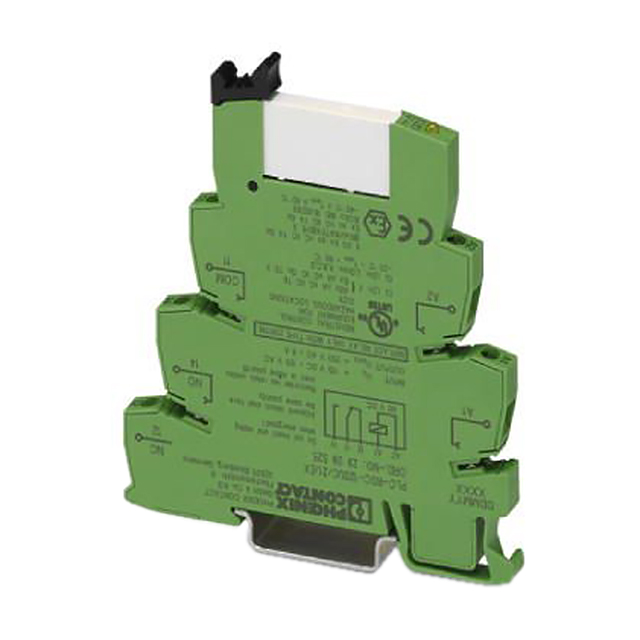

RELAY GEN PURPOSE SPDT 6A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2909525 | 29095 Series |
|---|---|---|
| Approval Agency | UKCA, CE | UKCA, CE |
| Coil Current | 3.5 mA | 3.2 - 33 mA |
| Coil Resistance | 34.29 kOhms | 2.667 - 1440 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 120 VAC, 120 VDC | 12 - 230 VAC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C), DPDT (2 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Nickel (AgNi), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A | 6 - 10 A |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 6 ms | 5 - 8 ms |
| Operating Temperature [Max] | 60 °C | 55 - 60 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 15 ms | 8 - 15 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Screw Terminal | Spring Terminal, Screw Terminal |
29095 Series
RELAY GEN PURPOSE SPDT 10A 120V
| Part | Coil Type | Relay Type | Contact Rating (Current) | Termination Style | Coil Voltage | Contact Form | Switching Voltage | Mounting Type | Contact Material | Operate Time | Approval Agency | Coil Current | Features | Operating Temperature [Min] | Operating Temperature [Max] | Release Time | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2909533 | Non Latching | General Purpose | 10 A | Spring Terminal | 120 VAC, 120 VDC | SPDT (1 Form C) | 250 VAC, 250 VDC | DIN Rail | Silver Nickel (AgNi) | 7 ms | CE, UKCA | 4.5 mA | Lighted Indicator, Socket Included | -40 °C | 60 °C | 10 ms | |
Phoenix Contact 2909512 | Non Latching | General Purpose | 6 A | Screw Terminal | 230 VAC | DPDT (2 Form C) | 250 VAC, 250 VDC | DIN Rail | Silver Nickel (AgNi) | 7 ms | CE, UKCA | 4.5 mA | Lighted Indicator, Socket Included | -40 °C | 55 °C | 10 ms | 51.1 kOhms |
Phoenix Contact 2909509 | Non Latching | General Purpose | 6 A | Screw Terminal | 24 VDC | DPDT (2 Form C) | 250 VAC, 250 VDC | DIN Rail | Silver Nickel (AgNi) | 8 ms | CE, UKCA | 18 mA | Lighted Indicator, Socket Included | -40 °C | 60 °C | 10 ms | 1440 Ohms |
Phoenix Contact 2909524 | Non Latching | General Purpose | 6 A | Screw Terminal | 24 VDC | SPDT (1 Form C) | 250 VAC, 250 VDC | DIN Rail | Silver Tin Oxide (AgSnO) | 5 ms | CE, UKCA | 9 mA | Lighted Indicator, Socket Included | -40 °C | 60 °C | 8 ms | 2.667 kOhms |
Phoenix Contact 2909525 | Non Latching | General Purpose | 6 A | Screw Terminal | 120 VAC, 120 VDC | SPDT (1 Form C) | 250 VAC, 250 VDC | DIN Rail | Silver Tin Oxide (AgSnO) | 6 ms | CE, UKCA | 3.5 mA | Lighted Indicator, Socket Included | -40 °C | 60 °C | 15 ms | 34.29 kOhms |
Phoenix Contact 2909534 | Non Latching | General Purpose | 10 A | Spring Terminal | 230 VAC | SPDT (1 Form C) | 250 VAC, 250 VDC | DIN Rail | Silver Nickel (AgNi) | 7 ms | CE, UKCA | 4.5 mA | Lighted Indicator, Socket Included | -40 °C | 55 °C | 10 ms | 51.11 kOhms |
Phoenix Contact 2909514 | Non Latching | General Purpose | 6 A | Spring Terminal | 24 VDC | DPDT (2 Form C) | 250 VAC, 250 VDC | DIN Rail | Silver Nickel (AgNi) | 8 ms | CE, UKCA | 18 mA | Lighted Indicator, Socket Included | -40 °C | 60 °C | 10 ms | 1333 Ohms |
Phoenix Contact 2909532 | Non Latching | General Purpose | 10 A | Spring Terminal | 24 VDC | SPDT (1 Form C) | 250 VAC, 250 VDC | DIN Rail | Silver Nickel (AgNi) | 8 ms | CE, UKCA | 18 mA | Lighted Indicator, Socket Included | -40 °C | 60 °C | 10 ms | 1333 Ohms |
Phoenix Contact 2909527 | Non Latching | General Purpose | 6 A | Spring Terminal | 12 VDC | SPDT (1 Form C) | 250 VAC, 250 VDC | DIN Rail | Silver Tin Oxide (AgSnO) | 5 ms | CE, UKCA | 15.3 mA | Lighted Indicator, Socket Included | -40 °C | 60 °C | 8 ms | 784.3 Ohms |
Phoenix Contact 2909529 | Non Latching | General Purpose | 6 A | Spring Terminal | 120 VAC, 120 VDC | SPDT (1 Form C) | 250 VAC, 250 VDC | DIN Rail | Silver Tin Oxide (AgSnO) | 6 ms | CE, UKCA | 3.5 mA | Lighted Indicator, Socket Included | -40 °C | 60 °C | 15 ms | 34.29 kOhms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.98 | |
Description
General part information
29095 Series
General Purpose Relay SPDT (1 Form C) 120VAC/DC Coil DIN Rail
