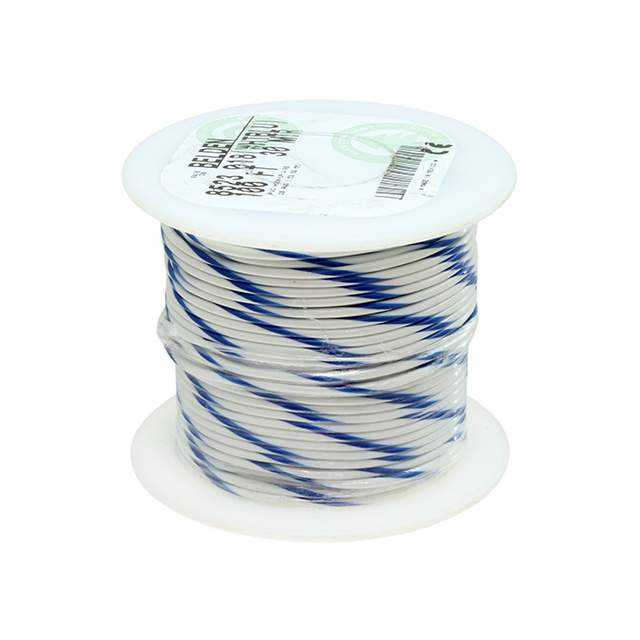

8523 018100

Active

Belden Inc.

HOOK-UP STRND 20AWG WHITE/BLUE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cabling Solutions for Industrial Applications

8523 018100

Active

Belden Inc.

HOOK-UP STRND 20AWG WHITE/BLUE

Deep-Dive with AI

DocumentsDatasheet Cabling Solutions for Industrial Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8523 018100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	10
Features	Chemical Resistant
Jacket (Insulation) Diameter [diameter]	1.78 mm
Jacket (Insulation) Diameter [diameter]	0.07 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.017 in
Jacket (Insulation) Thickness	0.43 mm
Jacket Color	White, Blue Stripe
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Qualification	MIL-W-76C Type MW
Voltage	1000 V
Wire Gauge	20 AWG

8523 Series

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Jacket Color	Cable Type	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage	Wire Gauge	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Qualification	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
Belden Inc. 8523 0071000	0.017 in	0.43 mm	1000 ft	304.8 m	Violet	Hook-Up	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Chemical Resistant	1000 V	20 AWG	Copper Tinned	30 AWG	10	MIL-W-76C Type MW	1.78 mm	0.07 "
Belden Inc. 8523 0051000	0.017 in	0.43 mm	1000 ft	304.8 m	Green	Hook-Up	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Chemical Resistant	1000 V	20 AWG	Copper Tinned	30 AWG	10	MIL-W-76C Type MW	1.78 mm	0.07 "
Belden Inc. 8523 018100	0.017 in	0.43 mm			White Blue Stripe	Hook-Up	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Chemical Resistant	1000 V	20 AWG	Copper Tinned	30 AWG	10	MIL-W-76C Type MW	1.78 mm	0.07 "	30.5 m	100 ft
Belden Inc. 8523 0081000	0.017 in	0.43 mm	1000 ft	304.8 m	Gray	Hook-Up	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Chemical Resistant	1000 V	20 AWG	Copper Tinned	30 AWG	10	MIL-W-76C Type MW	1.78 mm	0.07 "
Belden Inc. 8523 004100	0.017 in	0.43 mm			Yellow	Hook-Up	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Chemical Resistant	1000 V	20 AWG	Copper Tinned	30 AWG	10	MIL-W-76C Type MW	1.78 mm	0.07 "	30.5 m	100 ft
Belden Inc. 8523 010100	0.017 in	0.43 mm			Black	Hook-Up	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Chemical Resistant	1000 V	20 AWG	Copper Tinned	30 AWG	10	MIL-W-76C Type MW	1.78 mm	0.07 "	30.5 m	100 ft
Belden Inc. 8523 0061000	0.017 in	0.43 mm	1000 ft	304.8 m	Blue	Hook-Up	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Chemical Resistant	1000 V	20 AWG	Copper Tinned	30 AWG	10	MIL-W-76C Type MW	1.78 mm	0.07 "
Belden Inc. 8523 009100	0.017 in	0.43 mm				Hook-Up	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Chemical Resistant	1000 V	20 AWG	Copper Tinned	30 AWG	10	MIL-W-76C Type MW	1.78 mm	0.07 "	30.5 m	100 ft
Belden Inc. 8523 0181000	0.017 in	0.43 mm	1000 ft	304.8 m	White Blue Stripe	Hook-Up	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Chemical Resistant	1000 V	20 AWG	Copper Tinned	30 AWG	10	MIL-W-76C Type MW	1.78 mm	0.07 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 1.49
		200	$ 1.42
		300	$ 1.38
		500	$ 1.33
		700	$ 1.29
		1000	$ 1.26
		2500	$ 1.18
		5000	$ 1.12

Description

General part information

8523 Series

20 AWG Hook-Up Wire 10/30 White, Blue Stripe 1000V 100.0' (30.5m)
