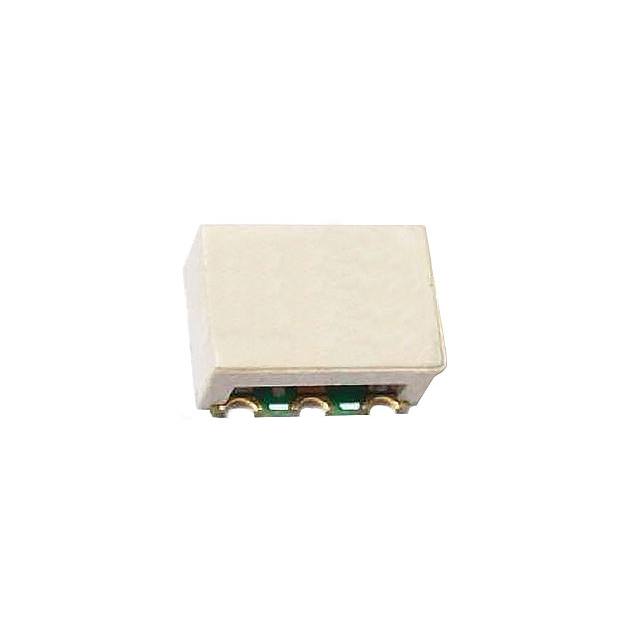

MAPD-009850-HW1268
ActiveMACOM Technology Solutions
E-SERIES 2 WAY DIVIDER 90DEG 112
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAPD-009850-HW1268
ActiveMACOM Technology Solutions
E-SERIES 2 WAY DIVIDER 90DEG 112
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAPD-009850-HW1268 |
|---|---|
| Frequency [Max] | 168 MHz |
| Frequency [Min] | 112 MHz |
| Insertion Loss | 0.5 dB |
| Package / Case | SM-89 |
| Size / Dimension [x] | 8.1 mm |
| Size / Dimension [x] | 0.319 " |
| Size / Dimension [y] | 0.25 in |
| Size / Dimension [y] | 6.35 mm |
| Size / Dimension [z] | 0.146 " |
| Size / Dimension [z] | 3.7 mm |
| Specifications | 24 dB |
| Specifications [Min] | 18 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.51 | |
| Digi-Reel® | 1 | $ 5.51 | ||
| Tape & Reel (TR) | 900 | $ 2.95 | ||
| 1800 | $ 2.76 | |||
| 2700 | $ 2.62 | |||
Description
General part information
MAPD-009850 Series
RF Power Divider 112 MHz ~ 168 MHz Isolation (Min) 18dB, 24dB Return Loss SM-89
