CBRLD1-06 TR13

Obsolete

Central Semiconductor Corp

BRIDGE RECT 1P 600V 1A 4-LPDIP

Search across all available documentation for this part.

Obsolete

Central Semiconductor Corp

BRIDGE RECT 1P 600V 1A 4-LPDIP

Technical Specifications

Parameters and characteristics for this part

Specification	CBRLD1-06 TR13

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

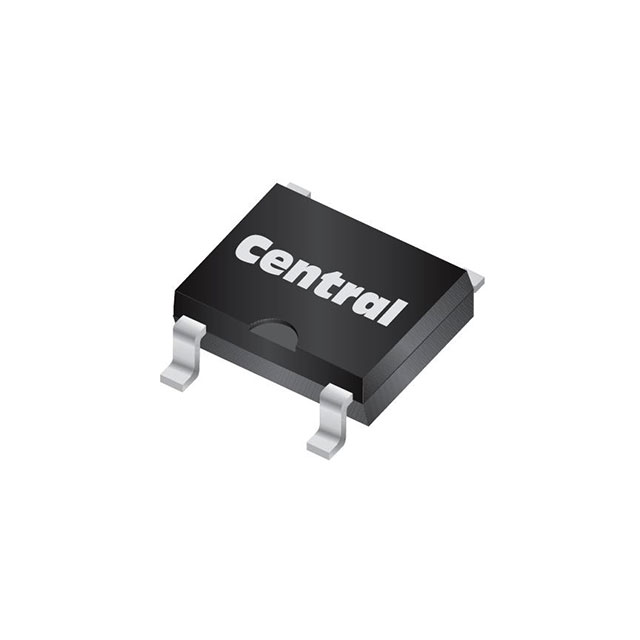

Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-LPDIP
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	600 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Diode Type	Current - Average Rectified (Io)	Supplier Device Package	Current - Reverse Leakage @ Vr	Technology	Mounting Type
Central Semiconductor Corp CBRLD1-06 TR13	-55 °C	150 °C	600 V	1 V	4-SMD Gull Wing	Single Phase	1 A	4-LPDIP	10 µA	Standard	Surface Mount
Central Semiconductor Corp CBRLD1-08 BK	-55 °C	150 °C	800 V	1 V	4-SMD Gull Wing	Single Phase	1 A	4-LPDIP	10 µA	Standard	Surface Mount
Central Semiconductor Corp CBRLD1-06 BK	-55 °C	150 °C	600 V	1 V	4-SMD Gull Wing	Single Phase	1 A	4-LPDIP	10 µA	Standard	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 600 V Surface Mount 4-LPDIP
