CX-413 Series

Part	Response Time	Light Source	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Connection Method	Sensing Distance	Ingress Protection	Sensing Method	Output Configuration	Operating Temperature (Min)	Operating Temperature (Max)	Cable Length
Panasonic Industrial Automation Sales CX-413-J	2 ms	Infrared	12 VDC	24 VAC	4POS Connector M12	30 m	IP67	Through-Beam	NPN - Open Collector	-25 °C	55 °C
Panasonic Industrial Automation Sales CX-413-Z	2 ms	Infrared	12 VDC	24 VAC	4POS Connector M8	30 m	IP67	Through-Beam	NPN - Open Collector	-25 °C	55 °C
Panasonic Industrial Automation Sales CX-413-P-J	2 ms	Infrared	12 VDC	24 VAC	4POS Connector M12	30 m	IP67	Through-Beam	PNP - Open Collector	-25 °C	55 °C
Panasonic Industrial Automation Sales CX-413-P-C5	2 ms	Infrared	12 VDC	24 VAC	Cable	30 m	IP67	Through-Beam	PNP - Open Collector	-25 °C	55 °C	196.85 in
Panasonic Industrial Automation Sales CX-413-P	2 ms	Infrared	12 VDC	24 VAC	Cable	30 m	IP67	Through-Beam	PNP - Open Collector	-25 °C	55 °C

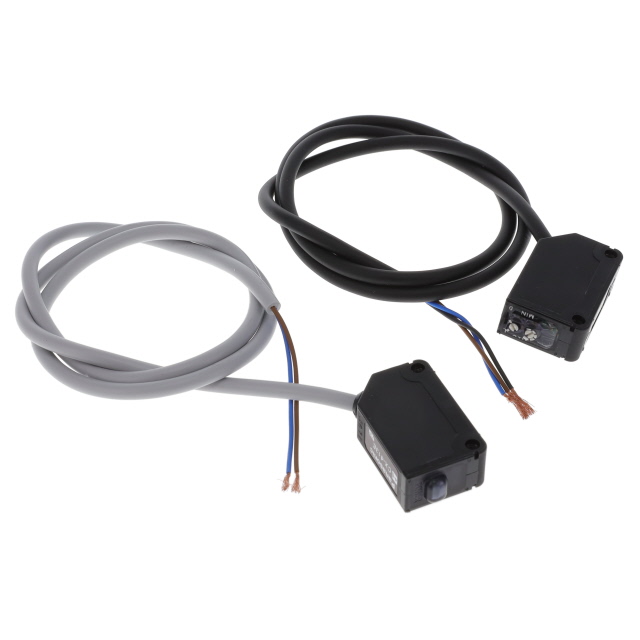

Panasonic Industrial Automation Sales CX-413-P-C05	2 ms	Infrared	12 VDC	24 VAC	Cable	30 m	IP67	Through-Beam	PNP - Open Collector	-25 °C	55 °C	19.5 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
