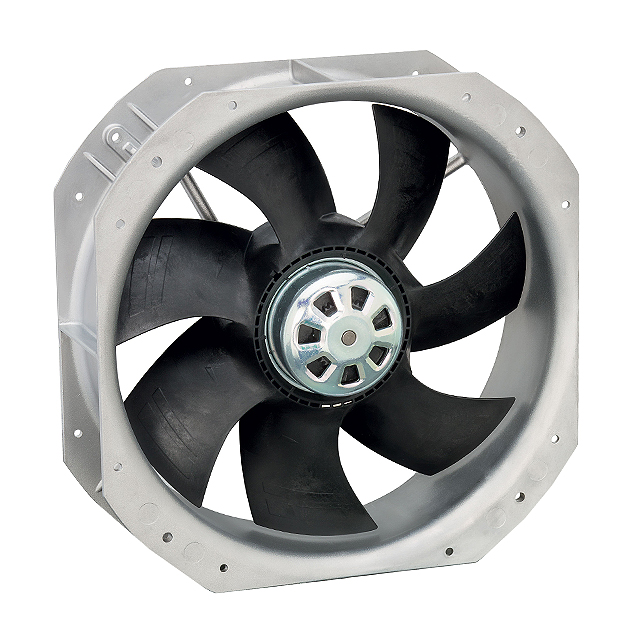

Specification	W3G250-HH53-03

Air Flow	846 CFM
Approval Agency	UL
Bearing Type	Ball
Current Rating	900 mA
Fan Type	Tubeaxial
Features	PWM Control, Speed Sensor (Tach)
Ingress Protection Description	Water Resistant, Dust Protected
Ingress Protection IP Rating	IP54
Material - Blade	Polypropylene, PP
Material - Frame	Aluminum
Operating Temperature (Max)	122 °F
Operating Temperature (Min)	-13 °F
Power (Watts)	56 W
RPM	2040 RPM
Size / Dimension Height	280 mm
Size / Dimension Length	280 mm
Size / Dimension Shape	Square
Static Pressure	0.32 in H2O
Termination	Terminal Block
Voltage - Rated	115 V
Voltage Range (Max)	130 V
Voltage Range (Min)	100 VAC
Weight	4.6 lbs
Width	80 mm

W3G250 Series

Part	Ingress Protection IP Rating	Ingress Protection Description	Static Pressure	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Features	RPM	Air Flow	Width	Power (Watts)	Fan Type	Approval Agency	Bearing Type	Weight	Termination	Voltage - Rated	Material - Blade	Material - Frame	Current Rating	Voltage Range (Min)	Voltage Range (Max)	Termination Type	Termination Leads Count	Ingress Protection	Size / Dimension Diameter
ebm-papst Inc. W3G250-HH53-03	IP54	Dust Protected Water Resistant	0.32 in H2O	122 °F	-13 °F	280 mm	Square	280 mm	PWM Control Speed Sensor (Tach)	2040 RPM	846 CFM	80 mm	56 W	Tubeaxial	UL	Ball	4.6 lbs	Terminal Block	115 V	Polypropylene PP	Aluminum	900 mA	100 VAC	130 V
ebm-papst Inc. W3G250-CC54-01				60 °C	-25 °C		Round		PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	3050 RPM			170 W	Tubeaxial	CCC CE CSA UL	Ball		3 Wire Leads with Ferrules 4 Wire Leads with Ferrules	230 VAC	Steel	Steel	1.25 A	200 VAC	277 VAC	Wire Leads with Ferrules	3 4	IP44	320 mm
ebm-papst Inc. W3G250-HK19-11	IP54	Dust Protected Water Resistant		60 °C	-25 °C	280 mm	Square	280 mm	PWM Control Speed Sensor (Tach)	2700 RPM	1120 CFM	80 mm	125 W	Tubeaxial	UL	Ball	7.6 lbs	Terminal Block	230 VAC	Polypropylene PP	Aluminum	1.1 A	200 VAC	240 V
ebm-papst Inc. W3G250-HH07-03	IP54	Dust Protected Water Resistant		60 °C	-25 °C	280 mm	Square	280 mm	PWM Control Speed Sensor (Tach)	2330 RPM	1000 CFM	80 mm	83 W	Tubeaxial	CCC CE CSA	Ball	4.6 lbs	Terminal Block	230 VAC	Polypropylene PP	Aluminum	0.72 A	200 VAC	240 V
ebm-papst Inc. W3G250-HK35-11	IP54	Dust Protected Water Resistant	0.52 in H2O	60 °C	-25 °C	280 mm	Square	280 mm	PWM Control Speed Sensor (Tach)	2700 RPM	1120 CFM	80 mm	125 W	Tubeaxial	UL	Ball	7.6 lbs	Terminal Block	115 V
