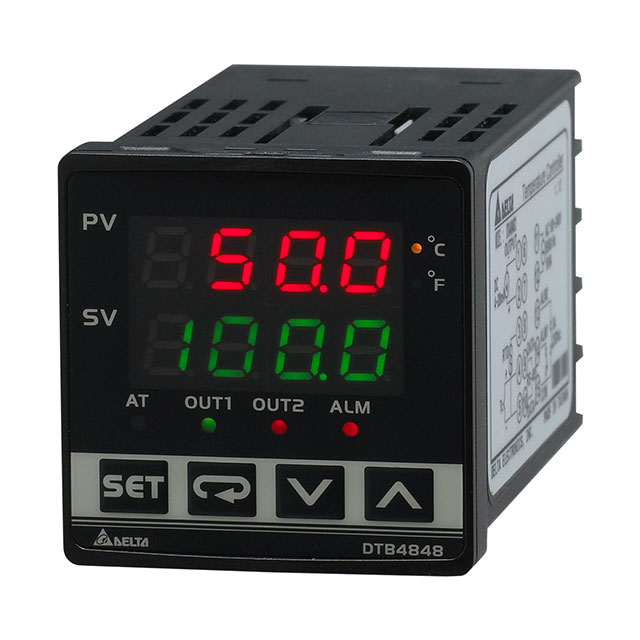

DTB4848CR

Active

Delta Electronics/Industrial Automation

DELTA TEMPERATURE CONTROLLER DTB

Deep-Dive with AI

Search across all available documentation for this part.

DTB4848CR

Active

Delta Electronics/Industrial Automation

DELTA TEMPERATURE CONTROLLER DTB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 159.39
		10	$ 124.52
		25	$ 112.23
		50	$ 103.46
		100	$ 95.12

Description

General part information

DTB4848 Series

Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) 100 ~ 240VAC Panel Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DTB4848CR	DTB4848 Series

Communications	RS-485 (Modbus)	RS-485 (Modbus)
Control Method	On/Off, Proportional (PID)	On/Off, Proportional (PID)
Display Type	LED - Dual Color Characters	LED - Dual Color Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Input Range [Max]	20 mA, 50 mV, 10 V, 1800 °C	10 - 1800 mA
Input Range [Min]	0 A, 0 V, -328 °F	-328 - 0 A
Number of Characters Per Row	4	4
Number of Characters Per Row	4	4
Output Type	Relay, Analog	Analog, Voltage (External SSR), Voltage (External SSR) (2), Relay, Analog
Panel Cutout Dimensions [x]	45 mm	45 mm
Panel Cutout Dimensions [y]	45 mm	45 mm
Termination Style	Screw Terminal	Screw Terminal
Type	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)
Voltage - Supply	-	24 VDC
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	100 VAC	100 VAC

DTB4848 Series

DELTA TEMPERATURE CONTROLLER DTB

Part	Output Type	Display Type	Input Range [Max]	Input Range [Min]	Communications	Type	Control Method	Ingress Protection	Termination Style	Number of Characters Per Row	Number of Characters Per Row	Voltage - Supply	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage - Supply [Min]	Voltage - Supply [Max]
Delta Electronics/Industrial Automation DTB4848CV-D	Analog, Voltage (External SSR)	LED - Dual Color Characters	10 V, 20 mA, 50 mV, 1800 °C	-328 °F, 0 A, 0 V	RS-485 (Modbus)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)	On/Off, Proportional (PID)	IP65 - Dust Tight, Water Resistant	Screw Terminal	4	4	24 VDC	45 mm	45 mm
Delta Electronics/Industrial Automation DTB4848VV	Voltage (External SSR) (2)	LED - Dual Color Characters	10 V, 20 mA, 50 mV, 1800 °C	-328 °F, 0 A, 0 V	RS-485 (Modbus)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)	On/Off, Proportional (PID)	IP65 - Dust Tight, Water Resistant	Screw Terminal	4	4		45 mm	45 mm	100 VAC	240 VAC
Delta Electronics/Industrial Automation DTB4848LR-D	Analog, Relay	LED - Dual Color Characters	10 V, 20 mA, 50 mV, 1800 °C	-328 °F, 0 A, 0 V	RS-485 (Modbus)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)	On/Off, Proportional (PID)	IP65 - Dust Tight, Water Resistant	Screw Terminal	4	4	24 VDC	45 mm	45 mm
Delta Electronics/Industrial Automation DTB4848CR	Analog, Relay	LED - Dual Color Characters	10 V, 20 mA, 50 mV, 1800 °C	-328 °F, 0 A, 0 V	RS-485 (Modbus)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)	On/Off, Proportional (PID)	IP65 - Dust Tight, Water Resistant	Screw Terminal	4	4		45 mm	45 mm	100 VAC	240 VAC
