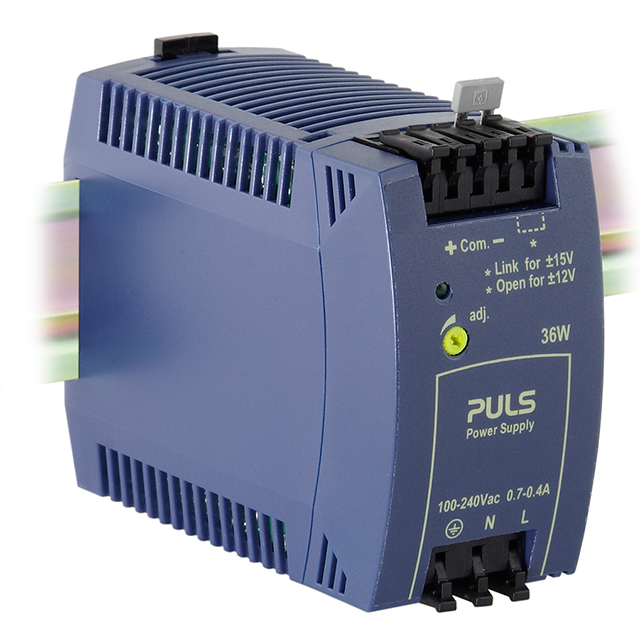

ML30.106

Active

PULS, LP

AC/DC DIN RAIL SUPPLY +/-12V 36W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY +/-12V 36W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 174.60

General part information

AC/DC DIN RAIL SUPPLY +/-12V 36W

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ML30.106	ML30 Series

AC Voltage - Input [Max]	264 VAC	264 VAC
AC Voltage - Input [Min]	85 VAC	85 VAC
Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	IEC, UL, NEC, EAC, ABS, DNV GL	DNV GL, CSA, EAC, IEC, ABS, NEC, UL
Current - Output (Max)	1.4 A, 2.8 A	1.4 - 2.8 A
Current - Output (Max)	-	1.3 - 5 A
Efficiency	86 %	80 - 89.4 %
Features	Universal Input, Adjustable Output, Load Sharing	Universal Input, Adjustable Output, Load Sharing
Input Type	AC	AC
Number of Outputs	2	1 - 2
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	36 W	30 - 36 W
Size / Dimension [x]	3.58 in	3.58 in
Size / Dimension [x]	91 mm	91 mm
Size / Dimension [y]	1.77 "	1.77 "
Size / Dimension [y]	45 mm	45 mm
Size / Dimension [z]	2.95 "	2.95 "
Size / Dimension [z]	75 mm	75 mm
Standard Number	61010.201, 60950.1, 508	508 - 61010.201
Standard Number	Class 2	Class 2
Voltage - Isolation	-	500 V
Voltage - Output 1	12 V	5 - 24 V
Voltage - Output 2	-12 V	-12 V

AC/DC DIN RAIL SUPPLY 24V 30W

Part	Operating Temperature [Max]	Number of Outputs	Efficiency	Voltage - Output 1	Power (Watts)	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Input Type	Applications	Features	Approval Agency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Standard Number	Standard Number
PULS, LP ML30.241	70 °C	1	89.4 %	24 V	30 W	500 V	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	AC	ITE (Commercial)	Adjustable Output, Load Sharing, Universal Input	ABS, CSA, DNV GL, EAC, IEC, NEC, UL	85 VAC	264 VAC	1.3 A
PULS, LP ML30.106	70 °C	2	86 %	12 V	36 W		2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	AC	ITE (Commercial)	Adjustable Output, Load Sharing, Universal Input	ABS, DNV GL, EAC, IEC, NEC, UL	85 VAC	264 VAC		-12 V	1.4 A, 2.8 A	508, 60950.1, 61010.201	Class 2
PULS, LP ML30.100	70 °C	1	87.5 %	24 V	30 W		2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	AC	ITE (Commercial)	Adjustable Output, Load Sharing, Universal Input	ABS, CSA, DNV GL, EAC, IEC, NEC, UL	85 VAC	264 VAC	1.3 A
PULS, LP ML30.101	70 °C	1	80 %	5 V	30 W		2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	AC	ITE (Commercial)	Adjustable Output, Load Sharing, Universal Input	ABS, CSA, DNV GL, EAC, IEC, NEC, UL	85 VAC	264 VAC	5 A
PULS, LP ML30.102	70 °C	1	84 %	12 V	30 W		2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	AC	ITE (Commercial)	Adjustable Output, Load Sharing, Universal Input	CSA, EAC, IEC, NEC, UL	85 VAC	264 VAC	3 A
