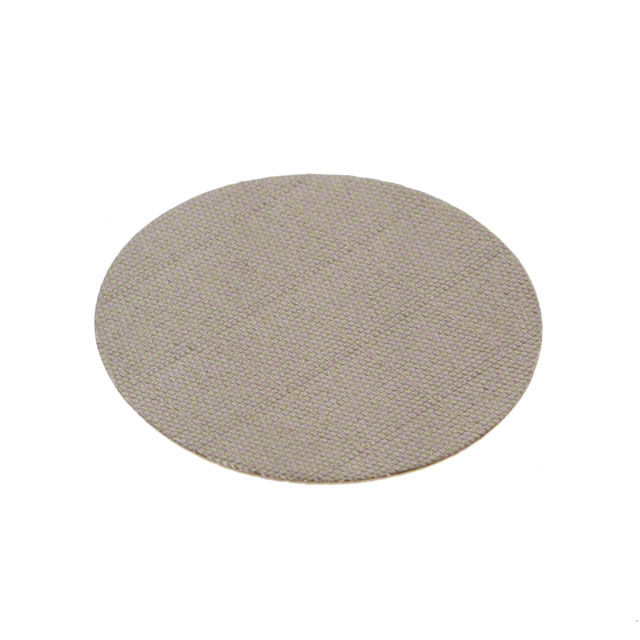

3M CN3190 CIRCLE-0.75"-250

Active

3M (TC)

RF EMI SHLDING SHEET 0.75" 250PK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3M CN3190 CIRCLE-0.75"-250

Active

3M (TC)

RF EMI SHLDING SHEET 0.75" 250PK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3M CN3190 CIRCLE-0.75"-250

Adhesive	Conductive, Single Sided
Material	Nickel-Copper (NI/CU) Fabric
Shape	Circular
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thickness - Overall	0.11 mm
Thickness - Overall	0.004 in
Type	Shielding Sheet
Width	0.75 in
Width	19.1 mm

CN3190 Series

...

Part	Shelf Life Start	Material	Thickness - Overall	Thickness - Overall	Width [y]	Width [y]	Adhesive	Shape	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life	Type	Length	Length	Width	Width [x]	Width [x]	Length [x]	Length [x]	Width
3M (TC) 3M CN3190 5" X 8.625"-25	Date of Manufacture	Nickel-Copper (NI/CU) Fabric	0.11 mm	0.004 in	127 mm	5 in	Conductive Single Sided	Sheet	70 °F	21 °C	60 Months	Shielding Sheet
3M (TC) 3M CN3190 0.5" X 8"-250	Date of Manufacture	Nickel-Copper (NI/CU) Fabric	0.11 mm	0.004 in			Conductive Single Sided	Sheet	70 °F	21 °C	60 Months	Shielding Sheet	8 in	203.2 mm
3M (TC) 3M CN3190 1" X 4"-100	Date of Manufacture	Nickel-Copper (NI/CU) Fabric	0.11 mm	0.004 in			Conductive Single Sided	Rectangular	70 °F	21 °C	60 Months	Shielding Sheet	4 in	101.6 mm	25.4 mm	1 in
3M (TC) 3M CN3190 3" X 3"-25	Date of Manufacture	Nickel-Copper (NI/CU) Fabric	0.11 mm	0.004 in			Conductive Single Sided	Square	70 °F	21 °C	60 Months	Shielding Sheet	3 in	76.2 mm		3 in	76.2 mm
3M (TC) 3M CN3190 1.5" X 1.25"-100	Date of Manufacture	Nickel-Copper (NI/CU) Fabric	0.11 mm	0.004 in	31.75 mm	1.25 in	Conductive Single Sided	Rectangular	70 °F	21 °C	60 Months	Shielding Sheet	1.5 "	38.1 mm
3M (TC) 3M CN3190 1"SQ-250	Date of Manufacture	Nickel-Copper (NI/CU) Fabric	0.11 mm	0.004 in			Conductive Single Sided	Square	70 °F	21 °C	60 Months	Shielding Sheet			25.4 mm	1 in		1 in	25.4 mm
3M (TC) 3M CN3190 1.5" X 54.5YD	Date of Manufacture	Nickel-Copper (NI/CU) Fabric	0.11 mm	0.004 in			Conductive Single Sided	Tape	70 °F	21 °C	60 Months	Shielding Sheet	163.5 '	49.83 m	38.1 mm	1.5 in
3M (TC) 3M CN3190 8" X 10.5"-25	Date of Manufacture	Nickel-Copper (NI/CU) Fabric	0.11 mm	0.004 in			Conductive Single Sided	Sheet	70 °F	21 °C	60 Months	Shielding Sheet	10.5 in	266.7 mm		8 in	203.2 mm
3M (TC) 3M CN3190 CIRCLE-0.75"-250	Date of Manufacture	Nickel-Copper (NI/CU) Fabric	0.11 mm	0.004 in			Conductive Single Sided	Circular	70 °F	21 °C	60 Months	Shielding Sheet			19.1 mm					0.75 in
3M (TC) 3M CN3190 5" X 10.5"-25	Date of Manufacture	Nickel-Copper (NI/CU) Fabric	0.11 mm	0.004 in	127 mm	5 in	Conductive Single Sided	Sheet	70 °F	21 °C	60 Months	Shielding Sheet	10.5 in	266.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 85.38

Description

General part information

CN3190 Series

RF EMI Shielding Sheet CN-3190 Nickel-Copper (NI/CU) Fabric Conductive, Single Sided 0.750" (19.10mm) X X 0.004" (0.11mm)
