D38999/25YC98PN
ActiveGlenair
CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D38999/25YC98PN | D38999/25YC Series |
|---|---|---|
| Applications | Military, Medical, Automotive, Aerospace | Military, Medical, Automotive, Aerospace |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Features | Self Locking | Self Locking |
| Grade | Military | Military |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic | Thermoplastic |
| Number of Positions | 10 | 10 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-38999 | MIL-DTL-38999 |
| Shell Finish | Passivated | Passivated |
| Shell Material | Stainless Steel | Stainless Steel |
| Shell Size - Insert | 13 | 13 |
| Shell Size, MIL | C | C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3150.38 | |
D38999/25YC Series
CONNECTOR
| Part | Shell Size - Insert | Ingress Protection | Number of Positions | Grade | Orientation | Shell Material | Shell Size, MIL | Primary Material | Insert Material | Contact Finish - Mating | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Connector Type | Qualification | Features | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Glenair D38999/25YC98PN | 13 | IP68 - Dust Tight, Waterproof | 10 | Military | N | Stainless Steel | C | Metal | Thermoplastic | Gold | Aerospace, Automotive, Medical, Military | -65 ░C | 200 °C | Passivated | Male Pins, Receptacle | MIL-DTL-38999 | Self Locking | Copper Alloy |
Glenair D38999/25YC98SN | 13 | IP68 - Dust Tight, Waterproof | 10 | Military | N | Stainless Steel | C | Metal | Thermoplastic | Gold | Aerospace, Automotive, Medical, Military | -65 ░C | 200 °C | Passivated | Receptacle, Female Sockets | MIL-DTL-38999 | Self Locking | Copper Alloy |
Description
General part information
D38999/25YC Series

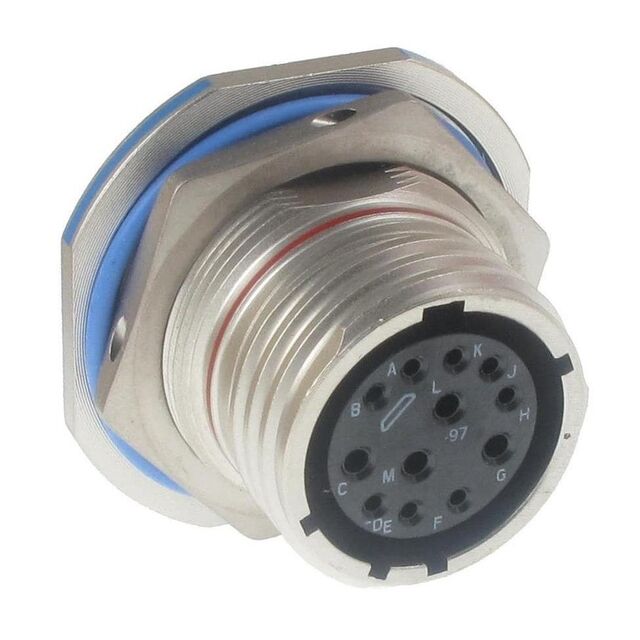

10 Position Circular Connector Receptacle, Male Pins Solder Cup
