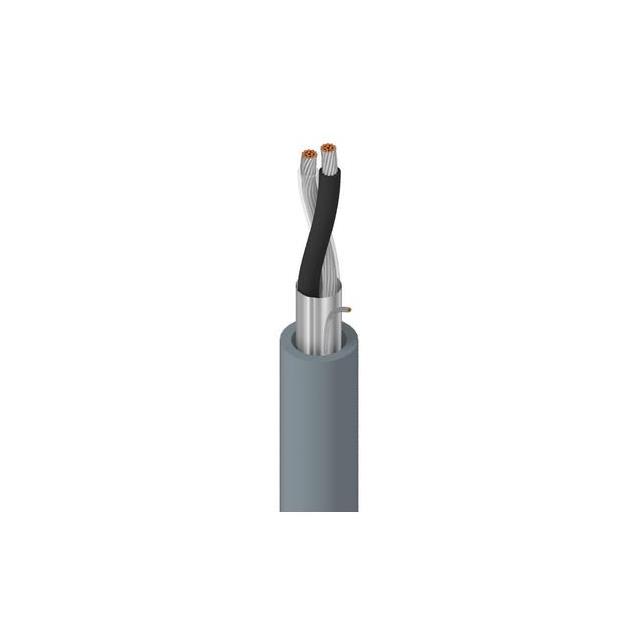

Specification	8760MN 0061000

Cable Type	Conductor, Multi
Conductor Arrangement	Twisted
Conductor Insulation	Polypropylene (PP)
Conductor Material	Tinned, Copper
Conductor Strand Count	41
Conductor Strand Gauge	34 AWG
Features	Drain Wire
Jacket (Insulation) Diameter	0.169 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Blue
Length	1000 ft
Number of Conductors	2
Number of Conductors - Pair	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-20 °C
Ratings	UL, 2937, Style
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation, Control, Audio
Voltage	300 V
Wire Gauge	18 AWG

8760MN Series

Part	Wire Gauge	Length	Jacket (Insulation) Diameter	Conductor Strand Count	Conductor Strand Gauge	Conductor Material	Jacket Color	Shield Type	Features	Conductor Insulation	Jacket (Insulation) Thickness	Cable Type	Operating Temperature (Min)	Operating Temperature (Max)	Jacket (Insulation) Material	Usage	Number of Conductors	Conductor Arrangement	Number of Conductors - Pair	Shield Material	Shield Coverage	Voltage	Ratings
Belden Inc. 8760MN 008100	18 AWG	100 ft	0.169 in	41	34 AWG	Copper Tinned	Gray	Foil	Drain Wire	Polypropylene (PP)	0.016 in	Conductor Multi	-20 °C	80 °C	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	2	Twisted	1	Aluminum	100 %
Belden Inc. 8760MN 0061000	18 AWG	1000 ft	0.169 in	41	34 AWG	Copper Tinned	Blue	Foil	Drain Wire	Polypropylene (PP)	0.016 in	Conductor Multi	-20 °C	80 °C	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	2	Twisted	1	Aluminum	100 %	300 V	2937 Style UL
Belden Inc. 8760MN 0081000	18 AWG	1000 ft	0.169 in	41	34 AWG	Copper Tinned	Gray	Foil	Drain Wire	Polypropylene (PP)	0.016 in	Conductor Multi	-20 °C	80 °C	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	2	Twisted	1	Aluminum	100 %	300 V	2937 Style UL
Belden Inc. 8760MN 0041000	18 AWG	1000 ft	0.169 in	41	34 AWG	Copper Tinned	Yellow	Foil	Drain Wire	Polypropylene (PP)	0.016 in	Conductor Multi	-20 °C	80 °C	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	2	Twisted	1	Aluminum	100 %	300 V	2937 Style UL
Belden Inc. 8760MN 006100	18 AWG	100 ft	0.169 in	41	34 AWG	Copper Tinned	Blue	Foil	Drain Wire	Polypropylene (PP)	0.016 in	Conductor Multi	-20 °C	80 °C	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	2	Twisted	1	Aluminum	100 %	300 V	2937 Style UL
