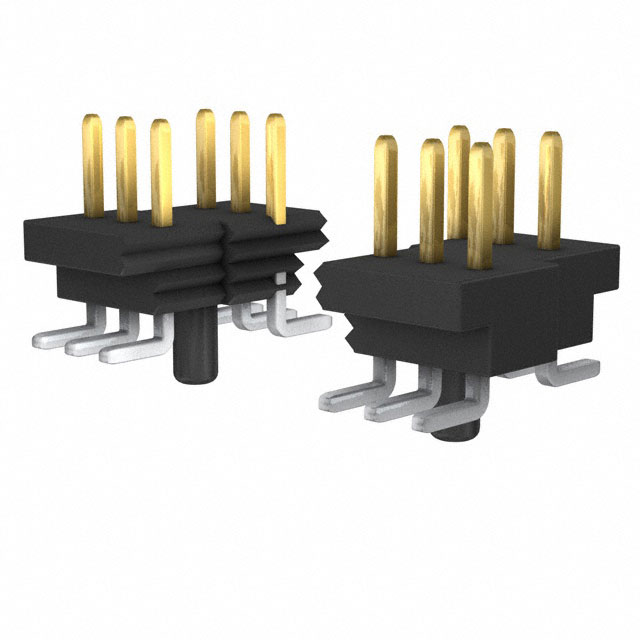

Specification	BKT-125-02-F-V-A-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Length - Mating	0.065 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	2.8 A
Fastening Type	Push-Pull
Features	Board Guide, Pick and Place
Insulation Color	Black
Insulation Height	0.064 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Height	4.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	25
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.039 in
Row Spacing - Mating	0.1 in
Shrouding	Unshrouded
Style	Board
Termination	Solder

BKT-125 Series

Part	Insulation Color	Number of Positions Loaded	Contact Finish Thickness - Mating	Style	Current Rating (Per Contact)	Number of Rows	Contact Material	Number of Positions	Row Spacing - Mating	Mounting Type	Insulation Material	Material Flammability Rating	Contact Length - Mating	Contact Type	Fastening Type	Contact Finish - Mating	Insulation Height	Pitch - Mating	Shrouding	Connector Type	Contact Shape	Termination	Contact Finish - Post	Operating Temperature (Max)	Operating Temperature (Min)	Mated Stacking Height	Features
Samtec Inc. BKT-125-03-L-V	Black	All	10 µin	Board	2.8 A	2	Phosphor Bronze	25	0.1 in	Surface Mount	Liquid Crystal Polymer (LCP)	UL94 V-0	0.065 in	Male Pin	Push-Pull	Gold	0.098 in	0.039 in	Unshrouded	Header	Square	Solder	Tin	125 °C	-55 °C	5 mm
Samtec Inc. BKT-125-05-F-V-S	Black	All	3 µin	Board	2.8 A	2	Phosphor Bronze	25	0.1 in	Surface Mount	Liquid Crystal Polymer (LCP)	UL94 V-0	0.065 in	Male Pin	Push-Pull	Gold	0.267 in	0.039 in	Shrouded - 4 Wall	Header	Square	Solder	Tin	125 °C	-55 °C	7 mm	End Shrouds
Samtec Inc. BKT-125-03-F-V-S-A-P	Black	All	3 µin	Board	2.8 A	2	Phosphor Bronze	25	0.1 in	Surface Mount	Liquid Crystal Polymer (LCP)	UL94 V-0	0.065 in	Male Pin	Push-Pull	Gold	0.188 in	0.039 in	Shrouded - 4 Wall	Header	Square	Solder	Tin	125 °C	-55 °C	5 mm	Board Guide End Shrouds Pick and Place
Samtec Inc. BKT-125-04-L-V-S-A	Black	All	10 µin	Board	2.8 A	2	Phosphor Bronze	25	0.1 in	Surface Mount	Liquid Crystal Polymer (LCP)	UL94 V-0	0.065 in	Male Pin	Push-Pull	Gold	0.227 in	0.039 in	Shrouded - 4 Wall	Header	Square	Solder	Tin	125 °C	-55 °C	6 mm	Board Guide End Shrouds
Samtec Inc. BKT-125-01-L-V-S-A	Black	All	10 µin	Board	2.8 A	2	Phosphor Bronze	25	0.1 in	Surface Mount	Liquid Crystal Polymer (LCP)	UL94 V-0	0.065 in	Male Pin	Push-Pull	Gold	0.154 in	0.039 in	Shrouded - 4 Wall	Header	Square	Solder	Tin	125 °C	-55 °C	4.14 mm	Board Guide End Shrouds
Samtec Inc. BKT-125-02-F-V-A-P-TR	Black	All	3 µin	Board	2.8 A	2	Phosphor Bronze	25	0.1 in	Surface Mount	Liquid Crystal Polymer (LCP)	UL94 V-0	0.065 in	Male Pin	Push-Pull	Gold	0.064 in	0.039 in	Unshrouded	Header	Square	Solder	Tin	125 °C	-55 °C	4.5 mm	Board Guide Pick and Place
Samtec Inc. BKT-125-04-F-V-A	Black	All	3 µin	Board	2.8 A	2	Phosphor Bronze	25	0.1 in	Surface Mount	Liquid Crystal Polymer (LCP)	UL94 V-0	0.065 in	Male Pin	Push-Pull	Gold	0.137 in	0.039 in	Unshrouded	Header	Square	Solder	Tin	125 °C	-55 °C	6 mm	Board Guide
Samtec Inc. BKT-125-02-F-V-A	Black	All	3 µin	Board	2.8 A	2	Phosphor Bronze	25	0.1 in	Surface Mount	Liquid Crystal Polymer (LCP)	UL94 V-0	0.065 in	Male Pin	Push-Pull	Gold	0.064 in	0.039 in	Unshrouded	Header	Square	Solder	Tin	125 °C	-55 °C	4.5 mm	Board Guide
Samtec Inc. BKT-125-01-L-V-S	Black	All	10 µin	Board	2.8 A	2	Phosphor Bronze	25	0.1 in	Surface Mount	Liquid Crystal Polymer (LCP)	UL94 V-0	0.065 in	Male Pin	Push-Pull	Gold	0.154 in	0.039 in	Shrouded - 4 Wall	Header	Square	Solder	Tin	125 °C	-55 °C	4.14 mm	End Shrouds
Samtec Inc. BKT-125-01-F-V-A-P	Black	All	3 µin	Board	2.8 A	2	Phosphor Bronze	25	0.1 in	Surface Mount	Liquid Crystal Polymer (LCP)	UL94 V-0	0.065 in	Male Pin	Push-Pull	Gold	0.064 in	0.039 in	Unshrouded	Header	Square	Solder	Tin	125 °C	-55 °C	4.14 mm	Board Guide Pick and Place
