TXR15AB00-1008AI

Active

TE Connectivity Aerospace, Defense and Marine

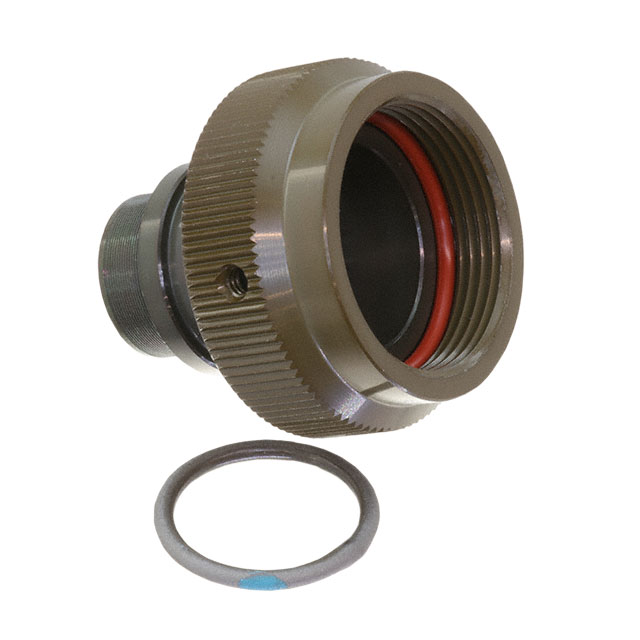

CONN BACKSH ADPT SZ18 OLIV 1-20

Deep-Dive with AI

Search across all available documentation for this part.

TXR15AB00-1008AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSH ADPT SZ18 OLIV 1-20

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 64.90
		10	$ 50.40
		25	$ 45.81
		50	$ 43.10

Description

General part information

TXR15AB00 Series

Olive Drab Connector Backshell, Heat Shrink Adapter 1-20 UNEF 18

Documents

Technical documentation and resources

No documents available

Specification	TXR15AB00-1008AI	TXR15AB00 Series

Cable Exit	180 °	180 °
Color	Olive Drab	Olive Drab
Diameter - Outside [diameter]	35 mm	21.5 - 68.6 mm
Diameter - Outside [diameter]	1.378 in	0.846 - 2.701 in
Features	Tinel Lock	Tinel Lock
For Use With/Related Products	MIL-DTL-5015 Connectors	MIL-DTL-5015 Connectors
Includes	1 Tinel Ring, 2 Screws, 1 Braid, 1 O-Ring, 1 Backshell	1 Tinel Ring, 2 Screws, 1 Braid, 1 O-Ring, 1 Backshell, 8 pcs - 2 pc Backshell, 2 O-Rings
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium	Cadmium
Shell Size - Insert	18	18 - 40
Shell Size - Insert	-	20, 22, 14S, 14, 8S, 10S, 12S, 12, 10SL, 28, 24
Shielding	Shielded	Shielded
Thread Size	1-20 UNEF	1 3/16-18 UNEF, 3/4-20 UNEF, 1/2-28 UNEF, 5/8-24 UNEF, 1 7/16-18 UNEF, 1-20 UNEF, 2 1/4-16 UN
Thread Size	-	-
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

Part	Color	Thread Size	Plating	Shielding	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	For Use With/Related Products	Includes	Type	Features	Cable Exit	Shell Size - Insert	Shell Size - Insert
TE Connectivity Aerospace, Defense and Marine TXR15AB00-1216AIH	Olive Drab	1 3/16-18 UNEF	Cadmium	Shielded	1.535 in	39 mm	Aluminum Alloy	MIL-DTL-5015 Connectors	1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws	Backshell, Heat Shrink Adapter	Tinel Lock	180 °	20, 22
TE Connectivity Aerospace, Defense and Marine TXR15AB00-0605AI	Olive Drab	3/4-20 UNEF	Cadmium	Shielded	1.102 in	28 mm	Aluminum Alloy	MIL-DTL-5015 Connectors	1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws	Backshell, Heat Shrink Adapter	Tinel Lock	180 °	14, 14S
TE Connectivity Aerospace, Defense and Marine TXR15AB00-0308AI	Olive Drab	1/2-28 UNEF	Cadmium	Shielded	0.846 in	21.5 mm	Aluminum Alloy	MIL-DTL-5015 Connectors	1 Braid, 1 Tinel Ring, 2 O-Rings, 2 Screws, 8 pcs - 2 pc Backshell	Backshell, Heat Shrink Adapter	Tinel Lock	180 °	10S, 8S
TE Connectivity Aerospace, Defense and Marine TXR15AB00-2022AI	Olive Drab		Cadmium	Shielded	2.161 in	54.9 mm	Aluminum Alloy	MIL-DTL-5015 Connectors	1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws	Backshell, Heat Shrink Adapter	Tinel Lock	180 °		32
TE Connectivity Aerospace, Defense and Marine TXR15AB00-0404AI	Olive Drab	5/8-24 UNEF	Cadmium	Shielded	0.984 "	25 mm	Aluminum Alloy	MIL-DTL-5015 Connectors	1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws	Backshell, Heat Shrink Adapter	Tinel Lock	180 °	10SL, 12, 12S
TE Connectivity Aerospace, Defense and Marine TXR15AB00-1618AIH	Olive Drab	1 7/16-18 UNEF	Cadmium	Shielded	1.78 in	45.2 mm	Aluminum Alloy	MIL-DTL-5015 Connectors	1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws	Backshell, Heat Shrink Adapter	Tinel Lock	180 °	24, 28
TE Connectivity Aerospace, Defense and Marine TXR15AB00-1008AI	Olive Drab	1-20 UNEF	Cadmium	Shielded	1.378 in	35 mm	Aluminum Alloy	MIL-DTL-5015 Connectors	1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws	Backshell, Heat Shrink Adapter	Tinel Lock	180 °		18
TE Connectivity Aerospace, Defense and Marine TXR15AB00-0307AI	Olive Drab	1/2-28 UNEF	Cadmium	Shielded	0.846 in	21.5 mm	Aluminum Alloy	MIL-DTL-5015 Connectors	1 Braid, 1 Tinel Ring, 2 O-Rings, 2 Screws, 8 pcs - 2 pc Backshell	Backshell, Heat Shrink Adapter	Tinel Lock	180 °	10S, 8S
TE Connectivity Aerospace, Defense and Marine TXR15AB00-2820AI	Olive Drab	2 1/4-16 UN	Cadmium	Shielded	2.701 in	68.6 mm	Aluminum Alloy	MIL-DTL-5015 Connectors	1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws	Backshell, Heat Shrink Adapter	Tinel Lock	180 °		40

Part

Color

Thread Size

Plating

Shielding

Diameter - Outside [diameter]

Material

For Use With/Related Products

Includes

Type

Features

Cable Exit

Shell Size - Insert

Thread Size

TE Connectivity Aerospace, Defense and Marine

TXR15AB00-1216AIH

Olive Drab

1 3/16-18 UNEF

Cadmium

Shielded

1.535 in

39 mm

Aluminum Alloy

MIL-DTL-5015 Connectors

1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws

Backshell, Heat Shrink Adapter

Tinel Lock

180 °

20, 22

TE Connectivity Aerospace, Defense and Marine

TXR15AB00-0605AI

Olive Drab

3/4-20 UNEF

Cadmium

Shielded

1.102 in

28 mm

Aluminum Alloy

MIL-DTL-5015 Connectors

1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws

Backshell, Heat Shrink Adapter

Tinel Lock

180 °

14, 14S

TE Connectivity Aerospace, Defense and Marine

TXR15AB00-0308AI

Olive Drab

1/2-28 UNEF

Cadmium

Shielded

0.846 in

21.5 mm

Aluminum Alloy

MIL-DTL-5015 Connectors

1 Braid, 1 Tinel Ring, 2 O-Rings, 2 Screws, 8 pcs - 2 pc Backshell

Backshell, Heat Shrink Adapter

Tinel Lock

180 °

10S, 8S

TE Connectivity Aerospace, Defense and Marine

TXR15AB00-2022AI

Olive Drab

Cadmium

Shielded

2.161 in

54.9 mm

Aluminum Alloy

MIL-DTL-5015 Connectors

1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws

Backshell, Heat Shrink Adapter

Tinel Lock

180 °

TE Connectivity Aerospace, Defense and Marine

TXR15AB00-0404AI

Olive Drab

5/8-24 UNEF

Cadmium

Shielded

0.984 "

25 mm

Aluminum Alloy

MIL-DTL-5015 Connectors

1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws

Backshell, Heat Shrink Adapter

Tinel Lock

180 °

10SL, 12, 12S

TE Connectivity Aerospace, Defense and Marine

TXR15AB00-1618AIH

Olive Drab

1 7/16-18 UNEF

Cadmium

Shielded

1.78 in

45.2 mm

Aluminum Alloy

MIL-DTL-5015 Connectors

1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws

Backshell, Heat Shrink Adapter

Tinel Lock

180 °

24, 28

TE Connectivity Aerospace, Defense and Marine

TXR15AB00-1008AI

Olive Drab

1-20 UNEF

Cadmium

Shielded

1.378 in

35 mm

Aluminum Alloy

MIL-DTL-5015 Connectors

1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws

Backshell, Heat Shrink Adapter

Tinel Lock

180 °

TE Connectivity Aerospace, Defense and Marine

TXR15AB00-0307AI

Olive Drab

1/2-28 UNEF

Cadmium

Shielded

0.846 in

21.5 mm

Aluminum Alloy

MIL-DTL-5015 Connectors

1 Braid, 1 Tinel Ring, 2 O-Rings, 2 Screws, 8 pcs - 2 pc Backshell

Backshell, Heat Shrink Adapter

Tinel Lock

180 °

10S, 8S

TE Connectivity Aerospace, Defense and Marine

TXR15AB00-2820AI

Olive Drab

2 1/4-16 UN

Cadmium

Shielded

2.701 in

68.6 mm

Aluminum Alloy

MIL-DTL-5015 Connectors

1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws

Backshell, Heat Shrink Adapter

Tinel Lock

180 °
