1079 SL005

Active

ALPHA WIRE

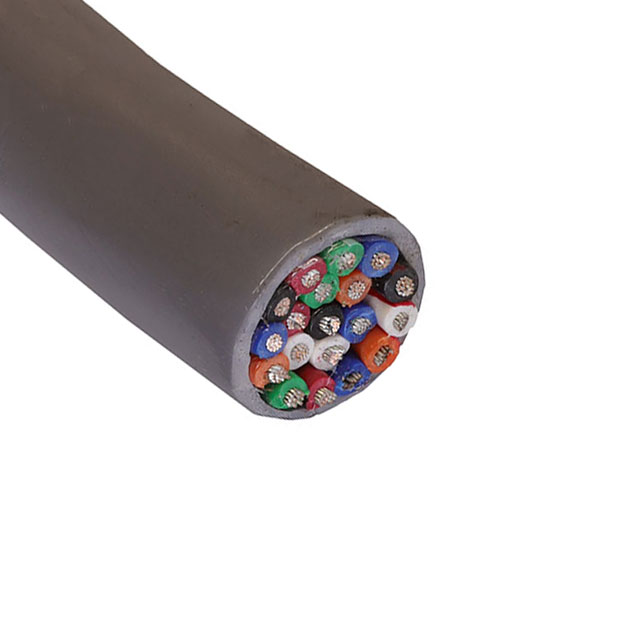

CABLE 19COND 16AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 19COND 16AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	1079 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Jacket (Insulation) Diameter [diameter]	19.03 mm
Jacket (Insulation) Diameter [diameter]	0.749 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.065 in
Jacket (Insulation) Thickness	1.651 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	19
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	600 V
Wire Gauge	16 AWG

CABLE 19COND 16AWG SLATE

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Jacket (Insulation) Material	Voltage	Cable Type	Conductor Material	Wire Gauge	Usage	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
ALPHA WIRE 1079 SL005	0.065 in	1.651 mm	19	0.0117 in	19	Slate	-20 C	80 C	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	600 V	Multi-Conductor	Copper, Tinned	16 AWG	Communication, Control	Poly-Vinyl Chloride (PVC)	19.03 mm	0.749 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 20.41

General part information

19 Conductor Multi-Conductor Cable Slate 16 AWG 100.0' (30.5m)
